ZW50F90AW1

Active

Honeywell Sensing and Productivity Solutions

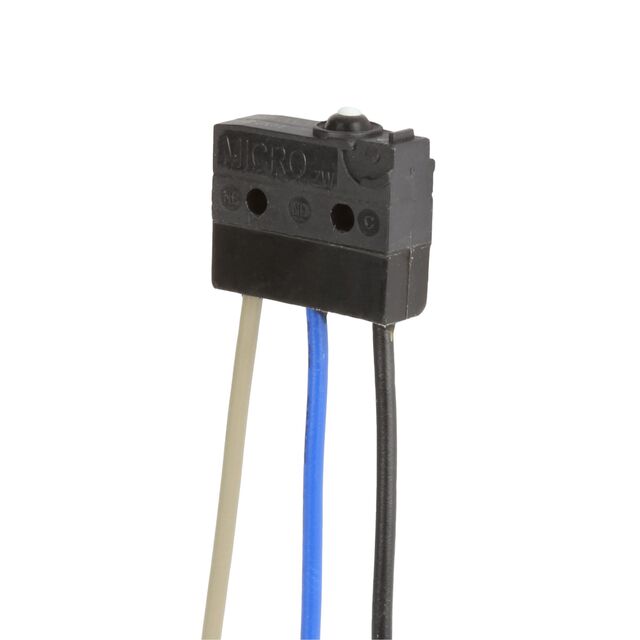

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZ Series Install Instr Datasheet

ZW50F90AW1

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsZ Series Install Instr Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZW50F90AW1

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.008 in
Differential Travel	0.2 mm
Electrical Life	10000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	203 gf
Operating Position	8.4 mm
Operating Position	0.33 in
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overtravel	0.6 mm
Overtravel	0.025 "
Pretravel	0.047 in
Pretravel	1.2 mm
Release Force	50 gf
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - AC	125 V

ZW50F Series

Part	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Ingress Protection	Circuit	Mounting Type	Operating Force	Mechanical Life	Voltage Rating - AC	Pretravel	Pretravel	Release Force	Overtravel	Overtravel	Differential Travel	Differential Travel	Electrical Life	Operating Position [custom]	Operating Position [custom]	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions ZW50F92AW1	6 A	Wire Leads	-40 °C	120 °C	Round (Pin Plunger)	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount	203 gf	1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F91FW1-B-Z	6 A	Wire Leads	-40 °C	120 °C	Lever Roller	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F15FD1-Z	5 A	Solder Lug	-40 °C	120 °C	Lever Roller	On-Mom	IP00	SPDT	Chassis Mount	72 gf	2000000 Cycles	125 V	4.3 mm	0.17 in	15 gf	0.035 "	0.9 mm	0.6 mm	0.025 in	10000 Cycles	0.571 in	14.5 mm
Honeywell Sensing and Productivity Solutions ZW50F91DW4	6 A	Wire Leads	-40 °C	120 °C	Lever Straight	On-Mom	IP67 - Dust Tight Waterproof	SPDT-NC	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F92SW1-A	6 A	Wire Leads	-40 °C	120 °C		On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F90AW1	5 A	Wire Leads	-40 °C	105 ░C	Round (Pin Plunger)	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount	203 gf	1000000 Cycles	125 V	1.2 mm	0.047 in	50 gf	0.025 "	0.6 mm	0.2 mm	0.008 in	10000 Cycles			8.4 mm	0.33 in
Honeywell Sensing and Productivity Solutions ZW50F70JD4	6 A	Quick Connect - 0.110" (2.8mm)	-40 °C	120 °C	Lever Straight	On-Mom	IP00	SPDT-NC	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F15CD1-Z	5 A	Solder Lug	-40 °C	120 °C	Lever Straight	On-Mom	IP00	SPDT	Chassis Mount	66 gf	1000000 Cycles	125 V	4.8 mm	0.188 in	13 gf	0.039 in	1 mm	0.7 mm	0.028 in	10000 Cycles			8.8 mm	0.345 in
Honeywell Sensing and Productivity Solutions ZW50F91CW1	6 A	Wire Leads	-40 °C	120 °C	Lever Straight	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F91HW1	5 A	Wire Leads	-40 °C	105 ░C	Lever Simulated Roller	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount	95 gf	2000000 Cycles	125 V	4.6 mm	0.18 in	19 gf	0.039 in	1 mm	0.65 mm	0.026 in	10000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 9.14

Description

General part information

ZW50F Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Z Series Install Instr

Datasheet
