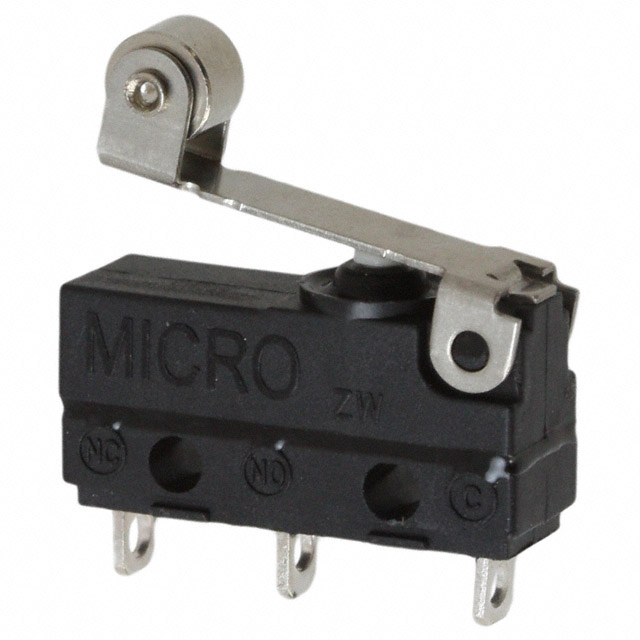

ZW50F15FD1-Z

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet

ZW50F15FD1-Z

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZW50F15FD1-Z

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.6 mm
Differential Travel	0.025 in
Electrical Life	10000 Cycles
Ingress Protection	IP00
Mechanical Life	2000000 Cycles
Mounting Type	Chassis Mount
Operating Force	72 gf
Operating Position [custom]	0.571 in
Operating Position [custom]	14.5 mm
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.035 "
Overtravel	0.9 mm
Pretravel	4.3 mm
Pretravel	0.17 in
Release Force	15 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

ZW50F Series

Part	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Ingress Protection	Circuit	Mounting Type	Operating Force	Mechanical Life	Voltage Rating - AC	Pretravel	Pretravel	Release Force	Overtravel	Overtravel	Differential Travel	Differential Travel	Electrical Life	Operating Position [custom]	Operating Position [custom]	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions ZW50F92AW1	6 A	Wire Leads	-40 °C	120 °C	Round (Pin Plunger)	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount	203 gf	1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F91FW1-B-Z	6 A	Wire Leads	-40 °C	120 °C	Lever Roller	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F15FD1-Z	5 A	Solder Lug	-40 °C	120 °C	Lever Roller	On-Mom	IP00	SPDT	Chassis Mount	72 gf	2000000 Cycles	125 V	4.3 mm	0.17 in	15 gf	0.035 "	0.9 mm	0.6 mm	0.025 in	10000 Cycles	0.571 in	14.5 mm
Honeywell Sensing and Productivity Solutions ZW50F91DW4	6 A	Wire Leads	-40 °C	120 °C	Lever Straight	On-Mom	IP67 - Dust Tight Waterproof	SPDT-NC	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F92SW1-A	6 A	Wire Leads	-40 °C	120 °C		On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F90AW1	5 A	Wire Leads	-40 °C	105 ░C	Round (Pin Plunger)	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount	203 gf	1000000 Cycles	125 V	1.2 mm	0.047 in	50 gf	0.025 "	0.6 mm	0.2 mm	0.008 in	10000 Cycles			8.4 mm	0.33 in
Honeywell Sensing and Productivity Solutions ZW50F70JD4	6 A	Quick Connect - 0.110" (2.8mm)	-40 °C	120 °C	Lever Straight	On-Mom	IP00	SPDT-NC	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F15CD1-Z	5 A	Solder Lug	-40 °C	120 °C	Lever Straight	On-Mom	IP00	SPDT	Chassis Mount	66 gf	1000000 Cycles	125 V	4.8 mm	0.188 in	13 gf	0.039 in	1 mm	0.7 mm	0.028 in	10000 Cycles			8.8 mm	0.345 in
Honeywell Sensing and Productivity Solutions ZW50F91CW1	6 A	Wire Leads	-40 °C	120 °C	Lever Straight	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount		1000000 Cycles	125 V
Honeywell Sensing and Productivity Solutions ZW50F91HW1	5 A	Wire Leads	-40 °C	105 ░C	Lever Simulated Roller	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Chassis Mount	95 gf	2000000 Cycles	125 V	4.6 mm	0.18 in	19 gf	0.039 in	1 mm	0.65 mm	0.026 in	10000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZW50F Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Basic, Toggle, Rocker Switches Range Guide

Datasheet
