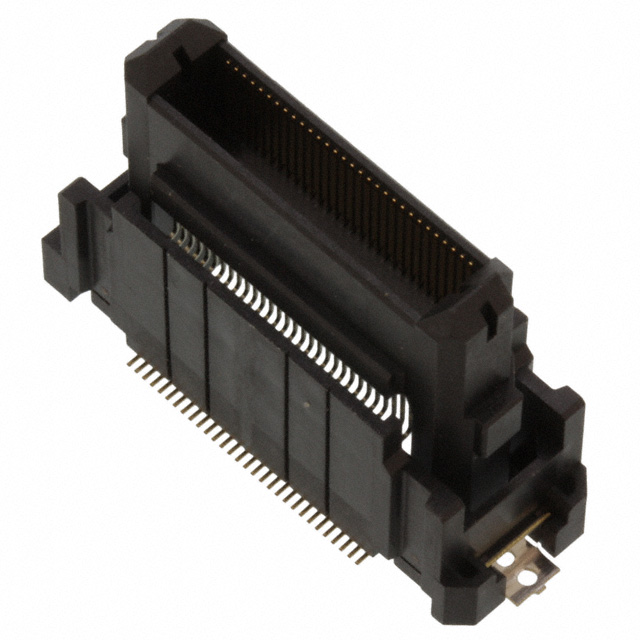

FX20-60P-0.5SV20

Active

Hirose Electric USA, Inc.

CONN HDR 60POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FX20 Series Brochure +1

FX20-60P-0.5SV20

Active

Hirose Electric USA, Inc.

CONN HDR 60POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet FX20 Series Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX20-60P-0.5SV20

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board [z]	0.717 in
Height Above Board [z]	18.21 mm
Mated Stacking Heights	20 mm, 30 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX20 Series

Part	Mounting Type	Height Above Board	Height Above Board	Contact Finish	Pitch [x]	Pitch [x]	Features	Connector Type	Number of Rows	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. FX20-60S-0.5SV(20)	Surface Mount	8.3 mm	0.327 in	Gold	0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	60	15 mm 20 mm	3.94 µin	0.1 Ám
Hirose Electric USA, Inc. FX20-140P-0.5SV20(10)	Surface Mount				0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	140	20 mm 30 mm			0.717 in	18.21 mm
Hirose Electric USA, Inc. FX20-140P-0.5SV15	Surface Mount	13.2 mm	0.52 in	Gold	0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	140	15 mm 25 mm	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX20-40S-0.5SV(20)	Surface Mount	8.3 mm	0.327 in	Gold	0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	40	15 mm 20 mm	3.94 µin	0.1 Ám
Hirose Electric USA, Inc. FX20-100P-0.5SV15(10)	Surface Mount	13.2 mm	0.52 in		0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	100	15 mm 25 mm
Hirose Electric USA, Inc. FX20-120S-0.5SV	Surface Mount	8.3 mm	0.327 in	Gold	0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	120	15 mm 20 mm	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX20-100P-0.5SV20(10)	Surface Mount				0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	100	20 mm 30 mm			0.717 in	18.21 mm
Hirose Electric USA, Inc. FX20-60S-0.5SV	Surface Mount	8.3 mm	0.327 in	Gold	0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	60	15 mm 20 mm	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX20-120S-0.5SH	Surface Mount Right Angle	7.15 mm	0.281 in		0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	120
Hirose Electric USA, Inc. FX20-60P-0.5SV20	Surface Mount			Gold	0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	60	20 mm 30 mm	4 Áin	0.1 Ám	0.717 in	18.21 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.26
		10	$ 5.69
		25	$ 5.39
		70	$ 5.26
		140	$ 5.01
		280	$ 4.38
		490	$ 4.26
		980	$ 3.63
		2450	$ 3.38

Description

General part information

FX20 Series

60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

FX20 Series Brochure

Datasheet

FX20-60P-0.5SV20 Spec

Datasheet
