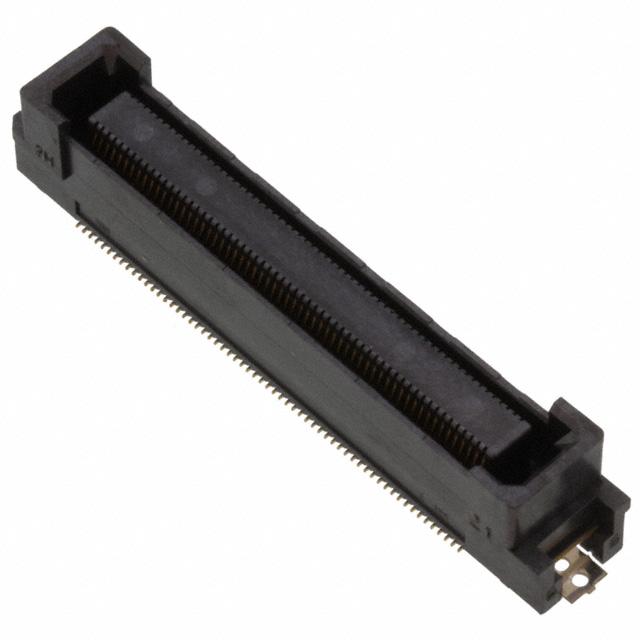

FX20-120S-0.5SV

Active

Hirose Electric USA, Inc.

CONN RCPT 120POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX20 Series Datasheet FX20 Series Brochure +1

FX20-120S-0.5SV

Active

Hirose Electric USA, Inc.

CONN RCPT 120POS SMD GOLD

Deep-Dive with AI

DocumentsFX20 Series Datasheet FX20 Series Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX20-120S-0.5SV

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board	8.3 mm
Height Above Board	0.327 in
Mated Stacking Heights	15 mm, 20 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX20 Series

Part	Mounting Type	Height Above Board	Height Above Board	Contact Finish	Pitch [x]	Pitch [x]	Features	Connector Type	Number of Rows	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. FX20-60S-0.5SV(20)	Surface Mount	8.3 mm	0.327 in	Gold	0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	60	15 mm 20 mm	3.94 µin	0.1 Ám
Hirose Electric USA, Inc. FX20-140P-0.5SV20(10)	Surface Mount				0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	140	20 mm 30 mm			0.717 in	18.21 mm
Hirose Electric USA, Inc. FX20-140P-0.5SV15	Surface Mount	13.2 mm	0.52 in	Gold	0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	140	15 mm 25 mm	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX20-40S-0.5SV(20)	Surface Mount	8.3 mm	0.327 in	Gold	0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	40	15 mm 20 mm	3.94 µin	0.1 Ám
Hirose Electric USA, Inc. FX20-100P-0.5SV15(10)	Surface Mount	13.2 mm	0.52 in		0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	100	15 mm 25 mm
Hirose Electric USA, Inc. FX20-120S-0.5SV	Surface Mount	8.3 mm	0.327 in	Gold	0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	120	15 mm 20 mm	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX20-100P-0.5SV20(10)	Surface Mount				0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	100	20 mm 30 mm			0.717 in	18.21 mm
Hirose Electric USA, Inc. FX20-60S-0.5SV	Surface Mount	8.3 mm	0.327 in	Gold	0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	60	15 mm 20 mm	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX20-120S-0.5SH	Surface Mount Right Angle	7.15 mm	0.281 in		0.5 mm	0.02 in	Solder Retention	Center Strip Contacts Receptacle	2	120
Hirose Electric USA, Inc. FX20-60P-0.5SV20	Surface Mount			Gold	0.5 mm	0.02 in	Solder Retention	Header Outer Shroud Contacts	2	60	20 mm 30 mm	4 Áin	0.1 Ám	0.717 in	18.21 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.03
		10	$ 3.66
		25	$ 3.47
		50	$ 3.38
		100	$ 3.22
		250	$ 2.84

Description

General part information

FX20 Series

120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

FX20 Series Datasheet

Datasheet

FX20 Series Brochure

Datasheet
