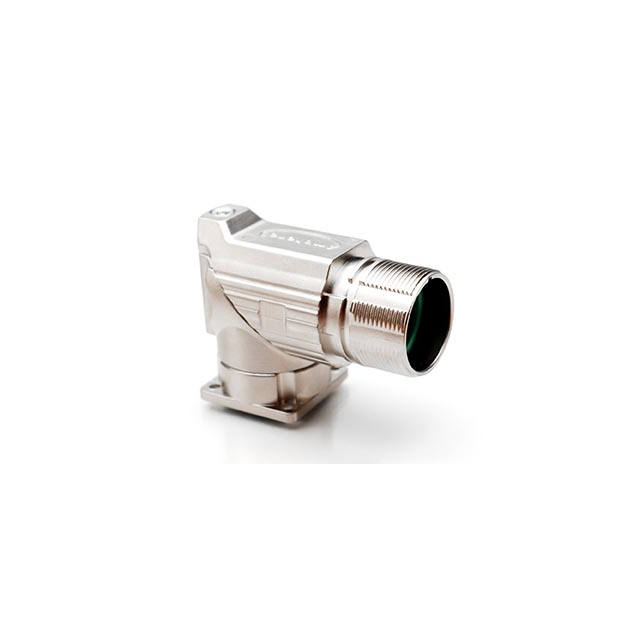

MA5RAE1702

Active

Amphenol Sine Systems Corp

17 POSITION RECEPTACLE, 90 ROTAT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Motiongrade M23

MA5RAE1702

Active

Amphenol Sine Systems Corp

17 POSITION RECEPTACLE, 90 ROTAT

Deep-Dive with AI

DocumentsDatasheet Motiongrade M23

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA5RAE1702

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Backshell, Rotatable
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	E
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Type	For Female Sockets or Male Pins

MA5RAE Series

Part	Shell Size - Insert	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Size	Ingress Protection	Note	Orientation	Insert Material	Material Flammability Rating	Fastening Type	Contact Type	Connector Type	Features	Mounting Type	Housing Color	Shell Finish	Shell Material	Number of Positions	Contact Shape	Type	Color	Termination	Primary Material	Number of Positions	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)
Amphenol Sine Systems Corp MA5RAE1201	M23-12	Flange	-20 C	130 °C	Shielded	1 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	N	Polyamide (PA66) Nylon 6/6	UL94 V-0	Push-Twist	Crimp	Receptacle Housing	Backshell Rotatable	Panel Mount Right Angle	Silver	Nickel	Zinc Die Cast	12	Circular	For Female Sockets or Male Pins
Amphenol Sine Systems Corp MA5RAE1602-KIT	M23-16	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal	16	Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1601-KIT	M23-16	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal	16	Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1702-KIT	M23-17	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal		Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1702	M23-17	Flange	-20 C	130 °C	Shielded	1 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	E	Polyamide (PA66) Nylon 6/6	UL94 V-0	Push-Twist	Crimp	Receptacle Housing	Backshell Rotatable	Panel Mount Right Angle	Silver	Nickel	Zinc Die Cast		Circular	For Female Sockets or Male Pins
Amphenol Sine Systems Corp MA5RAE1701-KIT	M23-17	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal		Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1201-KIT	M23-12	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast	12			Silver	Crimp	Metal		Gold	160 V	10 A
Amphenol Sine Systems Corp MA5RAE1701S-KIT	M23-17	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Receptacle Female Sockets	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal		Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1602S-KIT	M23-16	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Receptacle Female Sockets	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal	16	Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1601	M23-16	Flange	-20 C	130 °C	Shielded	1 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	N	Polyamide (PA66) Nylon 6/6	UL94 V-0	Push-Twist	Crimp	Receptacle Housing	Backshell Rotatable	Panel Mount Right Angle	Silver	Nickel	Zinc Die Cast		Circular	For Female Sockets or Male Pins				16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 25.03

Description

General part information

MA5RAE Series

17 Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
