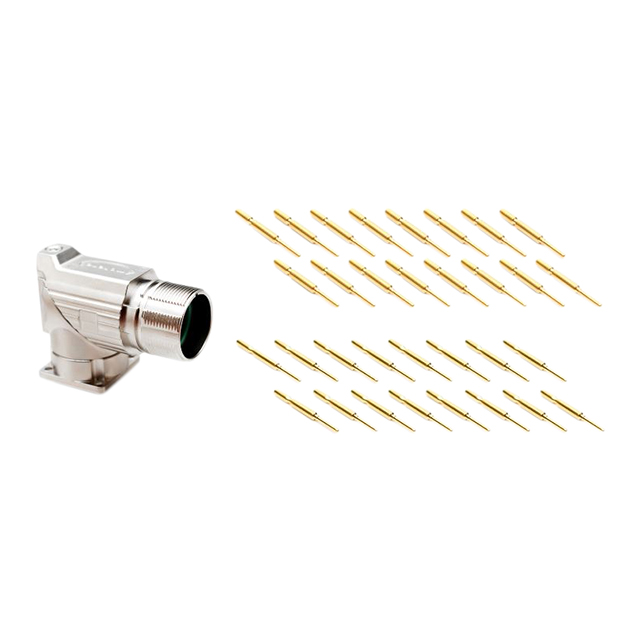

MA5RAE1601-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 16POS GOLD CRIMP

Deep-Dive with AI

DocumentsMotionGrade DIN M23/M40 MotionGrade +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA5RAE1601-KIT

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	9 A
Features	Backshell, Rotatable
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Positions	16
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-16
Termination	Crimp
Voltage Rating	125 VAC

MA5RAE Series

Part	Shell Size - Insert	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Size	Ingress Protection	Note	Orientation	Insert Material	Material Flammability Rating	Fastening Type	Contact Type	Connector Type	Features	Mounting Type	Housing Color	Shell Finish	Shell Material	Number of Positions	Contact Shape	Type	Color	Termination	Primary Material	Number of Positions	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)
Amphenol Sine Systems Corp MA5RAE1201	M23-12	Flange	-20 C	130 °C	Shielded	1 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	N	Polyamide (PA66) Nylon 6/6	UL94 V-0	Push-Twist	Crimp	Receptacle Housing	Backshell Rotatable	Panel Mount Right Angle	Silver	Nickel	Zinc Die Cast	12	Circular	For Female Sockets or Male Pins
Amphenol Sine Systems Corp MA5RAE1602-KIT	M23-16	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal	16	Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1601-KIT	M23-16	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal	16	Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1702-KIT	M23-17	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal		Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1702	M23-17	Flange	-20 C	130 °C	Shielded	1 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	E	Polyamide (PA66) Nylon 6/6	UL94 V-0	Push-Twist	Crimp	Receptacle Housing	Backshell Rotatable	Panel Mount Right Angle	Silver	Nickel	Zinc Die Cast		Circular	For Female Sockets or Male Pins
Amphenol Sine Systems Corp MA5RAE1701-KIT	M23-17	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal		Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1201-KIT	M23-12	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Male Pins Receptacle	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast	12			Silver	Crimp	Metal		Gold	160 V	10 A
Amphenol Sine Systems Corp MA5RAE1701S-KIT	M23-17	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Receptacle Female Sockets	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal		Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1602S-KIT	M23-16	Flange	-20 C	130 °C			IP67 - Dust Tight Waterproof		N					Receptacle Female Sockets	Backshell Rotatable	Panel Mount Right Angle		Nickel	Zinc Die Cast				Silver	Crimp	Metal	16	Gold	125 VAC	9 A
Amphenol Sine Systems Corp MA5RAE1601	M23-16	Flange	-20 C	130 °C	Shielded	1 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	N	Polyamide (PA66) Nylon 6/6	UL94 V-0	Push-Twist	Crimp	Receptacle Housing	Backshell Rotatable	Panel Mount Right Angle	Silver	Nickel	Zinc Die Cast		Circular	For Female Sockets or Male Pins				16
