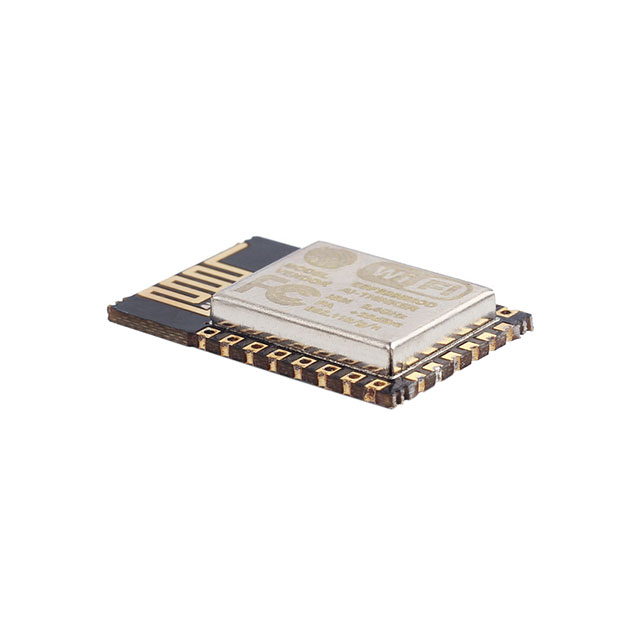

317060015

Obsolete

Seeed Technology Co., Ltd

RF TXRX MOD WIFI TH SMD

Search across all available documentation for this part.

Obsolete

Seeed Technology Co., Ltd

RF TXRX MOD WIFI TH SMD

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Memory Size	Modulation	Serial Interfaces	Package / Case	Antenna Type	Protocol	Utilized IC / Part	Mounting Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Frequency	Sensitivity	Current - Transmitting	Current - Receiving	Power - Output	Frequency [Min]	Frequency [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Seeed Technology Co., Ltd 317060362	WiFi	5 MB 16 MB	CCK OFDM	ADC GPIO I2C PWM SPI UART	Module	Integrated Trace	802.11b/g/n	MT3620AN	Surface Mount	72.2 Mbps	85 °C	-40 °C	3.3 V	2.4 GHz
Seeed Technology Co., Ltd 317060015	WiFi			UART	16-SMD Module	Integrated Trace	802.11b/g/n	ESP8266	Surface Mount	54 Mbps	125 °C	-40 °C	3.3 V	2.4 GHz	-93 dBm	70 mA	12 mA
Seeed Technology Co., Ltd 317060016	WiFi	1 MB		UART	Module	Integrated Trace	802.11b/g/n	ESP8266	Through Hole	72.2 Mbps	100 °C	-20 C	3.3 V		-98 dBm	215 mA	62 mA	15 dBm	2.4 GHz	2.48 GHz
Seeed Technology Co., Ltd 317060009	WiFi			UART	Module	Integrated Chip + I-PEX	802.11b/g/n	MT7681	Surface Mount					2.4 GHz							-10 °C	158 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount
