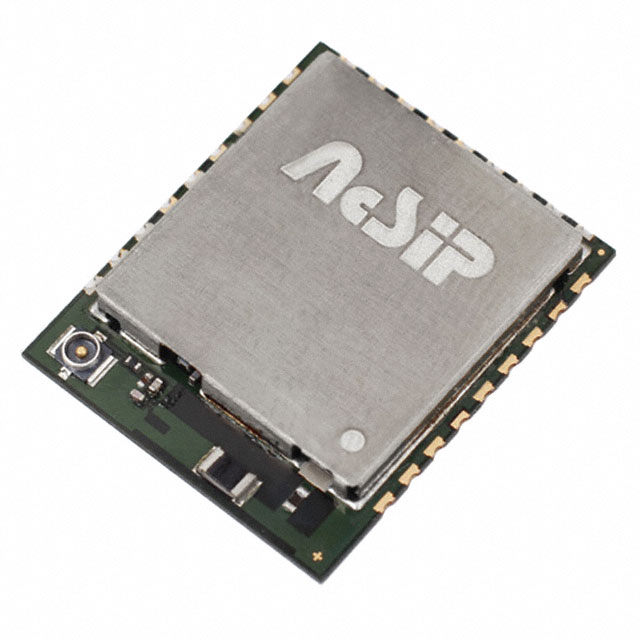

RF TXRX MOD WIFI CHIP + IPEX SMD

Search across all available documentation for this part.

Obsolete

Seeed Technology Co., Ltd

RF TXRX MOD WIFI CHIP + IPEX SMD

Technical Specifications

Parameters and characteristics for this part

Specification	317060009

Antenna Type	Integrated, Chip + I-PEX
Frequency	2.4 GHz
Mounting Type	Surface Mount
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Package / Case	Module
Protocol	802.11b/g/n
RF Family/Standard	WiFi
Serial Interfaces	UART
Utilized IC / Part	MT7681

Part	RF Family/Standard	Memory Size	Modulation	Serial Interfaces	Package / Case	Antenna Type	Protocol	Utilized IC / Part	Mounting Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Frequency	Sensitivity	Current - Transmitting	Current - Receiving	Power - Output	Frequency [Min]	Frequency [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Seeed Technology Co., Ltd 317060362	WiFi	5 MB 16 MB	CCK OFDM	ADC GPIO I2C PWM SPI UART	Module	Integrated Trace	802.11b/g/n	MT3620AN	Surface Mount	72.2 Mbps	85 °C	-40 °C	3.3 V	2.4 GHz
Seeed Technology Co., Ltd 317060015	WiFi			UART	16-SMD Module	Integrated Trace	802.11b/g/n	ESP8266	Surface Mount	54 Mbps	125 °C	-40 °C	3.3 V	2.4 GHz	-93 dBm	70 mA	12 mA
Seeed Technology Co., Ltd 317060016	WiFi	1 MB		UART	Module	Integrated Trace	802.11b/g/n	ESP8266	Through Hole	72.2 Mbps	100 °C	-20 C	3.3 V		-98 dBm	215 mA	62 mA	15 dBm	2.4 GHz	2.48 GHz
Seeed Technology Co., Ltd 317060009	WiFi			UART	Module	Integrated Chip + I-PEX	802.11b/g/n	MT7681	Surface Mount					2.4 GHz							-10 °C	158 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Chip + I-PEX Surface Mount
