0351500392

Active

Molex

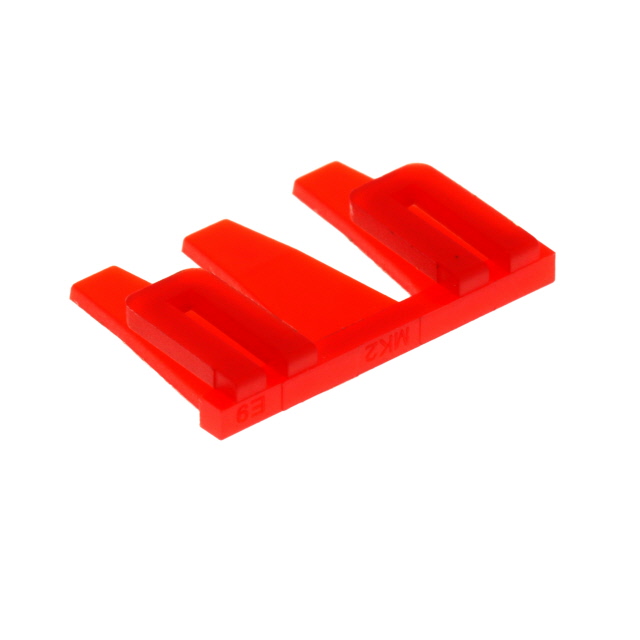

ACCESSORY RETAINER 3POS RED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0351500392

Accessory Type	Retainer
Color	Red
Material	Polyamide (PA66), Nylon 6/6
Specifications	3 Positions

035150 Series

Part	Number of Rows	Material - Insulation	Number of Positions	Contact Termination	Contact Type	Color	Pitch [x]	Pitch [x]	Connector Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Stacking Direction	Row Spacing	Row Spacing	Accessory Type	Material	Specifications	Mounting Type
Molex 0351500214	1	Polybutylene Terephthalate (PBT)	2	Crimp	Male Blade	Blue	6.2 mm	0.244 in	Receptacle	Contacts Not Included	-30 ░C	105 ░C	Locking Ramp	Side to Side
Molex 0351503419	2		4	Crimp	Female Blade Socket Male Blade	Yellow	6.2 mm	0.244 in	Receptacle	Contacts Not Included	-40 °C	120 °C	Locking Ramp	Top to Bottom and Side to Side	8.9 mm	0.35 in
Molex 0351500393						Yellow											Retainer	Polyamide (PA66) Nylon 6/6	3 Positions
Molex 0351500314	1	Polybutylene Terephthalate (PBT)		Crimp	Female Blade Socket Male Blade	Blue	7.3 mm	0.287 in	Receptacle	Contacts Not Included	-40 °C	120 °C	Locking Ramp	Side to Side
Molex 0351500610	2	Polybutylene Terephthalate (PBT) Polyester	6	Crimp	Female Blade Socket Male Blade	Natural	7.3 mm	0.287 in	Receptacle	Contacts Not Included	-40 °C	120 °C	Locking Ramp	Top to Bottom and Side to Side	7.8 mm	0.307 in
Molex 0351500204	1	Polybutylene Terephthalate (PBT)	2	Crimp	Male Blade	Blue	6.2 mm	0.244 in	Receptacle	Contacts Not Included	-30 ░C	105 ░C	Locking Ramp	Side to Side						Free Hanging (In-Line)
Molex 0351500392						Red											Retainer	Polyamide (PA66) Nylon 6/6	3 Positions
Molex 0351500294						Blue											Retainer	Polyamide (PA66) Nylon 6/6	2 Positions
Molex 0351500319	1	Polycarbonate (PC) Polyethylene Terephthalate (PET)		Crimp	Female Blade Socket Male Blade	Natural	7.3 mm	0.287 in	Receptacle	Contacts Not Included	-40 °C	120 °C	Locking Ramp	Side to Side
Molex 0351500100	1	Polybutylene Terephthalate (PBT)	1	Crimp	Male Blade	Natural			Receptacle	Contacts Not Included	-40 °C	105 ░C	Locking Ramp							Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.10
		10	$ 0.05
		100	$ 0.03
		2000	$ 0.03
		4000	$ 0.03

Description

General part information

035150 Series

Connector Retainer For VersaBlade Contacts

Documents

Technical documentation and resources

No documents available
