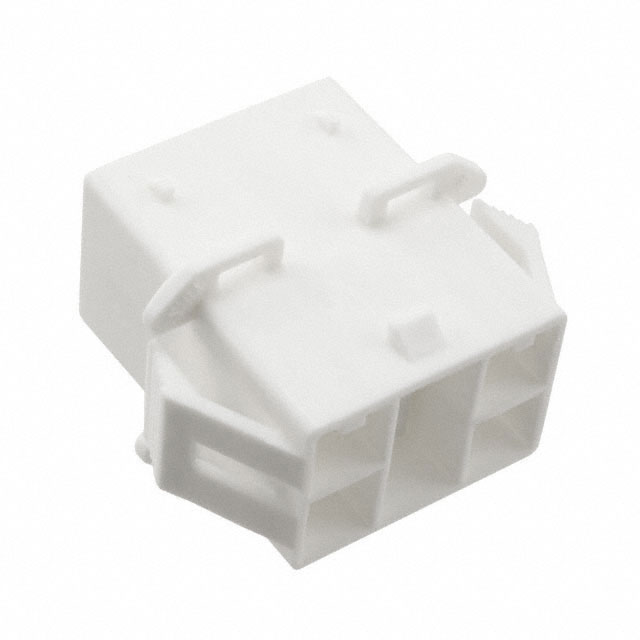

0351500610

Active

Molex

CONN HSG RCPT 6POS 7.30MM NAT

Deep-Dive with AI

Search across all available documentation for this part.

0351500610

Active

Molex

CONN HSG RCPT 6POS 7.30MM NAT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0351500610

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Blade Socket, Male Blade
Fastening Type	Locking Ramp
Material - Insulation	Polybutylene Terephthalate (PBT), Polyester
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.287 in
Pitch [x]	7.3 mm
Row Spacing	7.8 mm
Row Spacing	0.307 in
Stacking Direction	Top to Bottom and Side to Side

035150 Series

Part	Number of Rows	Material - Insulation	Number of Positions	Contact Termination	Contact Type	Color	Pitch [x]	Pitch [x]	Connector Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Stacking Direction	Row Spacing	Row Spacing	Accessory Type	Material	Specifications	Mounting Type
Molex 0351500214	1	Polybutylene Terephthalate (PBT)	2	Crimp	Male Blade	Blue	6.2 mm	0.244 in	Receptacle	Contacts Not Included	-30 ░C	105 ░C	Locking Ramp	Side to Side
Molex 0351503419	2		4	Crimp	Female Blade Socket Male Blade	Yellow	6.2 mm	0.244 in	Receptacle	Contacts Not Included	-40 °C	120 °C	Locking Ramp	Top to Bottom and Side to Side	8.9 mm	0.35 in
Molex 0351500393						Yellow											Retainer	Polyamide (PA66) Nylon 6/6	3 Positions
Molex 0351500314	1	Polybutylene Terephthalate (PBT)		Crimp	Female Blade Socket Male Blade	Blue	7.3 mm	0.287 in	Receptacle	Contacts Not Included	-40 °C	120 °C	Locking Ramp	Side to Side
Molex 0351500610	2	Polybutylene Terephthalate (PBT) Polyester	6	Crimp	Female Blade Socket Male Blade	Natural	7.3 mm	0.287 in	Receptacle	Contacts Not Included	-40 °C	120 °C	Locking Ramp	Top to Bottom and Side to Side	7.8 mm	0.307 in
Molex 0351500204	1	Polybutylene Terephthalate (PBT)	2	Crimp	Male Blade	Blue	6.2 mm	0.244 in	Receptacle	Contacts Not Included	-30 ░C	105 ░C	Locking Ramp	Side to Side						Free Hanging (In-Line)
Molex 0351500392						Red											Retainer	Polyamide (PA66) Nylon 6/6	3 Positions
Molex 0351500294						Blue											Retainer	Polyamide (PA66) Nylon 6/6	2 Positions
Molex 0351500319	1	Polycarbonate (PC) Polyethylene Terephthalate (PET)		Crimp	Female Blade Socket Male Blade	Natural	7.3 mm	0.287 in	Receptacle	Contacts Not Included	-40 °C	120 °C	Locking Ramp	Side to Side
Molex 0351500100	1	Polybutylene Terephthalate (PBT)	1	Crimp	Male Blade	Natural			Receptacle	Contacts Not Included	-40 °C	105 ░C	Locking Ramp							Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.38
		10	$ 0.32
		150	$ 0.25
		1050	$ 0.21

Description

General part information

035150 Series

6 Position Blade Type Power Housing Connector Receptacle Natural 0.287" (7.30mm)

Documents

Technical documentation and resources

No documents available
