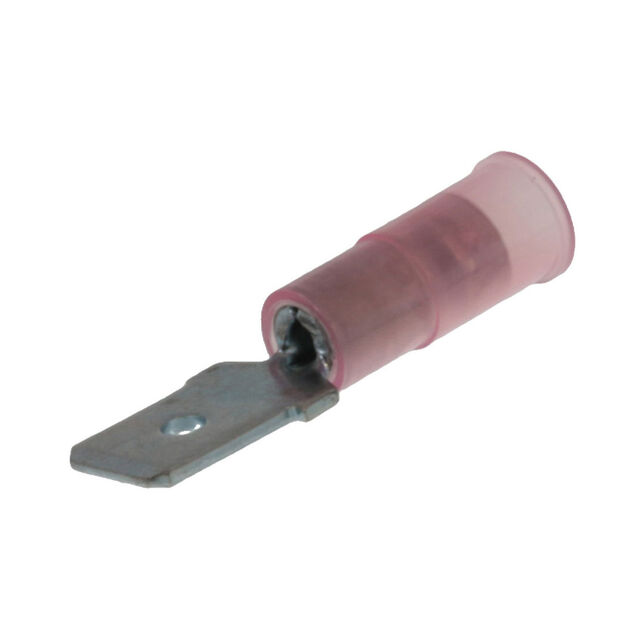

0190250004

Active

Molex

CONN QC TAB 18-22AWG 0.250 CRIMP

Search across all available documentation for this part.

Active

Molex

CONN QC TAB 18-22AWG 0.250 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0190250004

Color	Red
Contact Finish	Zinc
Contact Material	Brass
Gender	Male
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	0.138 in
Insulation Diameter [diameter]	3.51 mm
Length - Overall	25.4 mm
Length - Overall [x]	1 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.3 in
Tab Length	7.62 mm
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Terminal Type	Color	Insulation	Gender	Contact Finish	Tab Width	Tab Width	Mounting Type	Tab Length	Tab Length	Termination	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Tab Thickness	Tab Thickness	Length - Overall
Molex 0190250003	Standard	Red	Non-Mating End Insulated	Male	Zinc Chromate	4.75 mm	0.187 in	Free Hanging (In-Line)	0.24 "	6.1 mm	Crimp	Brass	0.138 in	3.51 mm	23.37 mm	0.92 "	22 AWG	17.5 AWG	0.02 "	0.51 mm
Molex 0190250007	Standard	Blue	Non-Mating End Insulated	Male	Tin	6.35 mm	0.25 in	Free Hanging (In-Line)	0.3 in	7.62 mm	Crimp	Brass	0.165 "	4.19 mm		1 in			0.032 in	0.81 mm	25.4 mm
Molex 0190250004	Standard	Red	Non-Mating End Insulated	Male	Zinc	6.35 mm	0.25 in	Free Hanging (In-Line)	0.3 in	7.62 mm	Crimp	Brass	0.138 in	3.51 mm		1 in	22 AWG	17.5 AWG	0.032 in	0.81 mm	25.4 mm
Molex 0190250002	Standard	Red	Non-Mating End Insulated	Male	Tin	4.75 mm	0.187 in	Free Hanging (In-Line)	0.24 "	6.1 mm	Crimp	Brass	0.138 in	3.51 mm	20.83 mm	0.82 in	22 AWG	17.5 AWG	0.02 "	0.51 mm
Molex 0190250008	Standard	Blue	Non-Mating End Insulated	Male	Zinc	4.75 mm	0.187 in	Free Hanging (In-Line)	0.24 "	6.1 mm	Crimp	Brass	0.165 "	4.19 mm	20.83 mm	0.82 in			0.02 "	0.51 mm
Molex 0190250010	Standard	Blue	Non-Mating End Insulated	Male	Zinc	6.35 mm	0.25 in	Free Hanging (In-Line)	0.3 in	7.62 mm	Crimp	Brass	0.165 "	4.19 mm		1 in			0.032 in	0.81 mm	25.4 mm
Molex 0190250006	Standard	Yellow	Non-Mating End Insulated	Male	Zinc	6.35 mm	0.25 in	Free Hanging (In-Line)	0.3 in	7.62 mm	Crimp	Brass	0.225 "	5.72 mm		1.18 "	12 AWG	10 AWG	0.032 in	0.81 mm	29.98 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7500	$ 0.26

General part information

0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Non-Mating End Insulated
