0190250003

Active

Molex

CONN QC TAB 18-22AWG 0.187 CRIMP

Search across all available documentation for this part.

Active

Molex

CONN QC TAB 18-22AWG 0.187 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0190250003

Color	Red
Contact Finish	Zinc Chromate
Contact Material	Brass
Gender	Male
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	0.138 in
Insulation Diameter [diameter]	3.51 mm
Length - Overall [x]	23.37 mm
Length - Overall [x]	0.92 "
Mounting Type	Free Hanging (In-Line)
Tab Length	0.24 "
Tab Length	6.1 mm
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Terminal Type	Color	Insulation	Gender	Contact Finish	Tab Width	Tab Width	Mounting Type	Tab Length	Tab Length	Termination	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Tab Thickness	Tab Thickness	Length - Overall
Molex 0190250003	Standard	Red	Non-Mating End Insulated	Male	Zinc Chromate	4.75 mm	0.187 in	Free Hanging (In-Line)	0.24 "	6.1 mm	Crimp	Brass	0.138 in	3.51 mm	23.37 mm	0.92 "	22 AWG	17.5 AWG	0.02 "	0.51 mm
Molex 0190250007	Standard	Blue	Non-Mating End Insulated	Male	Tin	6.35 mm	0.25 in	Free Hanging (In-Line)	0.3 in	7.62 mm	Crimp	Brass	0.165 "	4.19 mm		1 in			0.032 in	0.81 mm	25.4 mm
Molex 0190250004	Standard	Red	Non-Mating End Insulated	Male	Zinc	6.35 mm	0.25 in	Free Hanging (In-Line)	0.3 in	7.62 mm	Crimp	Brass	0.138 in	3.51 mm		1 in	22 AWG	17.5 AWG	0.032 in	0.81 mm	25.4 mm
Molex 0190250002	Standard	Red	Non-Mating End Insulated	Male	Tin	4.75 mm	0.187 in	Free Hanging (In-Line)	0.24 "	6.1 mm	Crimp	Brass	0.138 in	3.51 mm	20.83 mm	0.82 in	22 AWG	17.5 AWG	0.02 "	0.51 mm
Molex 0190250008	Standard	Blue	Non-Mating End Insulated	Male	Zinc	4.75 mm	0.187 in	Free Hanging (In-Line)	0.24 "	6.1 mm	Crimp	Brass	0.165 "	4.19 mm	20.83 mm	0.82 in			0.02 "	0.51 mm
Molex 0190250010	Standard	Blue	Non-Mating End Insulated	Male	Zinc	6.35 mm	0.25 in	Free Hanging (In-Line)	0.3 in	7.62 mm	Crimp	Brass	0.165 "	4.19 mm		1 in			0.032 in	0.81 mm	25.4 mm
Molex 0190250006	Standard	Yellow	Non-Mating End Insulated	Male	Zinc	6.35 mm	0.25 in	Free Hanging (In-Line)	0.3 in	7.62 mm	Crimp	Brass	0.225 "	5.72 mm		1.18 "	12 AWG	10 AWG	0.032 in	0.81 mm	29.98 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7500	$ 0.33

General part information

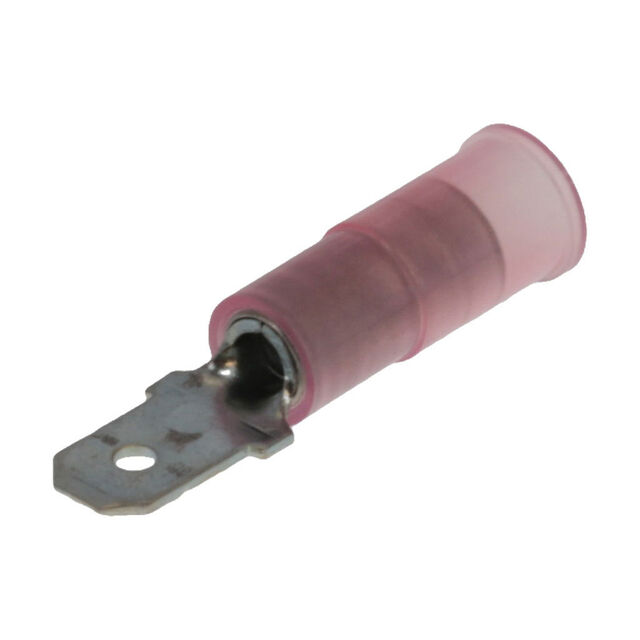

0.187" (4.75mm) Quick Connect Male 18-22 AWG Crimp Connector Non-Mating End Insulated
