Q-040140003003M
ActiveAmphenol Custom Cable
CBL ASSY BNC-MCX JACK-JACK 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
Q-040140003003M
ActiveAmphenol Custom Cable
CBL ASSY BNC-MCX JACK-JACK 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-040140003003M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | MCX Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | BNC to MCX |
Q-040140 Series
| Part | 1st Connector Mounting Type | 2nd Connector | Style | 2nd Contact Gender | 1st Connector Mounting Feature | Length | Length | Length | Features | Frequency - Max [Max] | 1st Contact Gender | Cable Type | 1st Connector | 2nd Connector Mounting Type | Color | Overall Impedance | Length [x] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | 1 m | 3.3 ft | 39.4 in | Shielded | 4 GHz | Female | RG-316 | BNC Jack | Free Hanging (In-Line) | Copper | 50 Ohms | |||
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | 228.6 mm | 9 " | Shielded | 4 GHz | Female | RG-174 | BNC Jack | Free Hanging (In-Line) | Black | 50 Ohms | ||||
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | 3 m | 9.8 ' | 118.1 in | Shielded | 4 GHz | Female | RG-174 | BNC Jack | Free Hanging (In-Line) | Black | 50 Ohms | |||
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | 2 m | 6.6 ft | 78.7 in | Shielded | 4 GHz | Female | RG-174 | BNC Jack | Free Hanging (In-Line) | Black | 50 Ohms | |||
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | 76.2 mm | 3 in | Shielded | 4 GHz | Female | RG-174 | BNC Jack | Free Hanging (In-Line) | Black | 50 Ohms | ||||
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | 750 mm | 29.53 " | Shielded | 4 GHz | Female | RG-174 | BNC Jack | Free Hanging (In-Line) | Black | 50 Ohms | ||||
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | Shielded | 4 GHz | Female | RG-174 | BNC Jack | Free Hanging (In-Line) | Black | 50 Ohms | 9.843 " | 250 mm | ||||
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | Shielded | 4 GHz | Female | RG-174 | BNC Jack | Free Hanging (In-Line) | Black | 50 Ohms | 457.2 mm | 457.2 mm | ||||
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | 1 m | 3.3 ft | 39.4 in | Shielded | 4 GHz | Female | RG-174 | BNC Jack | Free Hanging (In-Line) | Black | 50 Ohms | |||
Amphenol Custom Cable | Panel Mount | MCX Jack | BNC to MCX | Female | Bulkhead - Front Side Nut | 3 m | 9.8 ' | 118.1 in | Shielded | 4 GHz | Female | RG-316 | BNC Jack | Free Hanging (In-Line) | Copper | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 77.53 | |
| 25 | $ 72.24 | |||
| 50 | $ 66.95 | |||
| 100 | $ 62.42 | |||
| 250 | $ 58.64 | |||
Description
General part information
Q-040140 Series

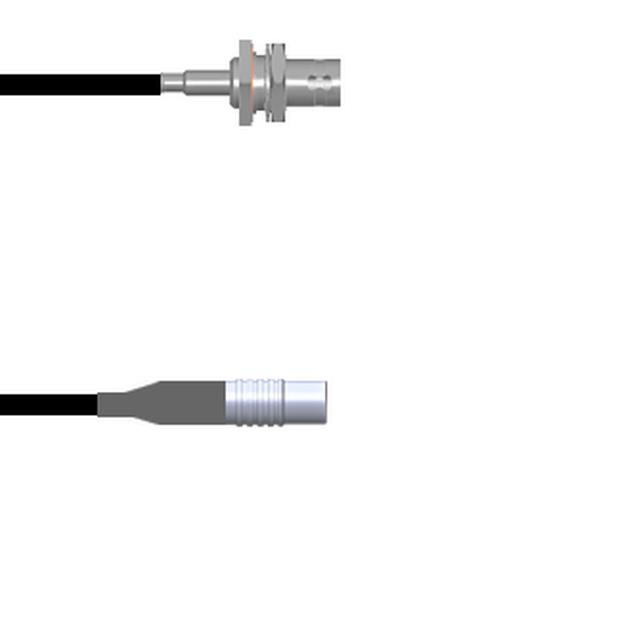

Cable Assembly Coaxial BNC to MCX RG-174 118.1" (3.0m) 9.8'
