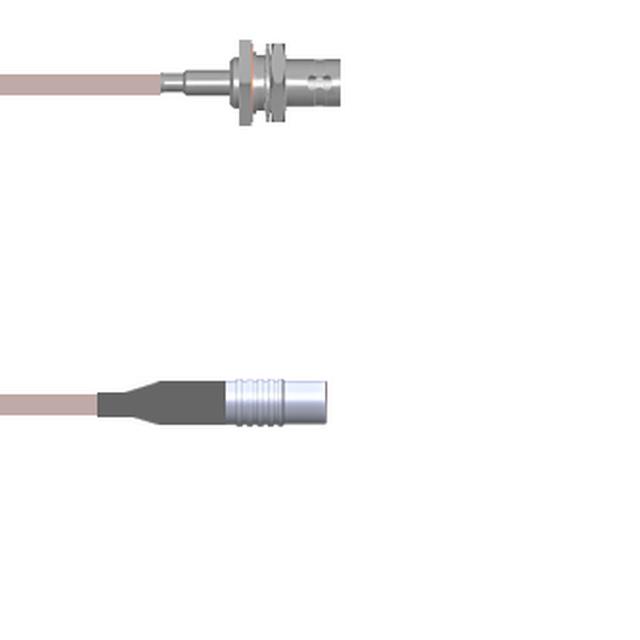

Q-040140005001M

Active

Amphenol Custom Cable

COAX CBL BNC TO MCX 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-040140005001M

Active

Amphenol Custom Cable

COAX CBL BNC TO MCX 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-040140005001M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-040140 Series

Part	1st Connector Mounting Type	2nd Connector	Style	2nd Contact Gender	1st Connector Mounting Feature	Length	Length	Length	Features	Frequency - Max [Max]	1st Contact Gender	Cable Type	1st Connector	2nd Connector Mounting Type	Color	Overall Impedance	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-040140005001M	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut	1 m	3.3 ft	39.4 in	Shielded	4 GHz	Female	RG-316	BNC Jack	Free Hanging (In-Line)	Copper	50 Ohms
Amphenol Custom Cable Q-040140003009i	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut	228.6 mm		9 "	Shielded	4 GHz	Female	RG-174	BNC Jack	Free Hanging (In-Line)	Black	50 Ohms
Amphenol Custom Cable Q-040140003003M	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut	3 m	9.8 '	118.1 in	Shielded	4 GHz	Female	RG-174	BNC Jack	Free Hanging (In-Line)	Black	50 Ohms
Amphenol Custom Cable Q-040140003002M	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut	2 m	6.6 ft	78.7 in	Shielded	4 GHz	Female	RG-174	BNC Jack	Free Hanging (In-Line)	Black	50 Ohms
Amphenol Custom Cable Q-040140003003i	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut	76.2 mm		3 in	Shielded	4 GHz	Female	RG-174	BNC Jack	Free Hanging (In-Line)	Black	50 Ohms
Amphenol Custom Cable Q-040140003.75M	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut	750 mm		29.53 "	Shielded	4 GHz	Female	RG-174	BNC Jack	Free Hanging (In-Line)	Black	50 Ohms
Amphenol Custom Cable Q-040140003.25M	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut				Shielded	4 GHz	Female	RG-174	BNC Jack	Free Hanging (In-Line)	Black	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-040140003018i	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut				Shielded	4 GHz	Female	RG-174	BNC Jack	Free Hanging (In-Line)	Black	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-040140003001M	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut	1 m	3.3 ft	39.4 in	Shielded	4 GHz	Female	RG-174	BNC Jack	Free Hanging (In-Line)	Black	50 Ohms
Amphenol Custom Cable Q-040140005003M	Panel Mount	MCX Jack	BNC to MCX	Female	Bulkhead - Front Side Nut	3 m	9.8 '	118.1 in	Shielded	4 GHz	Female	RG-316	BNC Jack	Free Hanging (In-Line)	Copper	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 110.70
		25	$ 108.56
		50	$ 106.42
		100	$ 104.28
		250	$ 102.14

Description

General part information

Q-040140 Series

Cable Assembly Coaxial BNC to MCX RG-316 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
