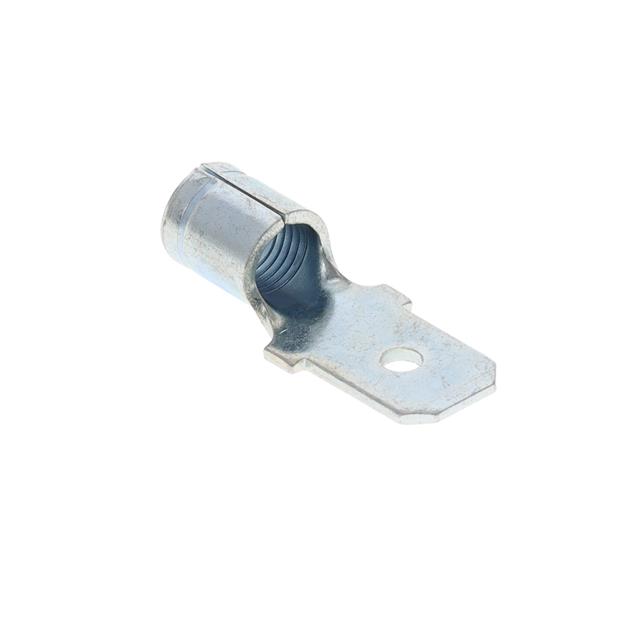

0190220118

Active

Molex

CONN QC TAB 10-12AWG 0.250 CRIMP

Search across all available documentation for this part.

Active

Molex

CONN QC TAB 10-12AWG 0.250 CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Tab Width	Tab Width	Gender	Mounting Type	Tab Thickness	Tab Thickness	Terminal Type	Contact Finish	Contact Material
Molex 0190220015	Crimp	Non-Insulated	12 AWG	10 AWG	19.43 mm	0.765 in	7.8 mm	0.307 in	6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220118	Crimp	Non-Insulated	12 AWG	10 AWG	19.43 mm	0.765 in	7.8 mm	0.307 in	6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220022	Crimp	Non-Insulated			16 mm	0.63 "	6.22 mm	0.245 in	4.75 mm	0.187 in	Male	Free Hanging (In-Line)	0.02 "	0.51 mm	Standard	Zinc	Brass
Molex 0190220009	Crimp	Non-Insulated	22 AWG	17.5 AWG	16 mm	0.63 "	6.22 mm	0.245 in	4.75 mm	0.187 in	Male	Free Hanging (In-Line)	0.02 "	0.51 mm	Standard	Zinc	Brass
Molex 0190220006	Crimp	Non-Insulated	22 AWG	17.5 AWG	16 mm	0.63 "	6.22 mm	0.245 in	4.75 mm	0.187 in	Male	Free Hanging (In-Line)	0.02 "	0.51 mm	Standard	Zinc	Brass
Molex 0190220119	Crimp	Non-Insulated			18.34 mm	0.722 in			6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220017	Crimp	Non-Insulated	12 AWG	10 AWG	19.43 mm	0.765 in	7.8 mm	0.307 in	6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220116	Crimp	Non-Insulated	22 AWG	17.5 AWG	18.34 mm	0.722 in			6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220026	Crimp	Non-Insulated			18.34 mm	0.722 in			6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Male 10-12 AWG Crimp Connector Non-Insulated

Technical documentation and resources
