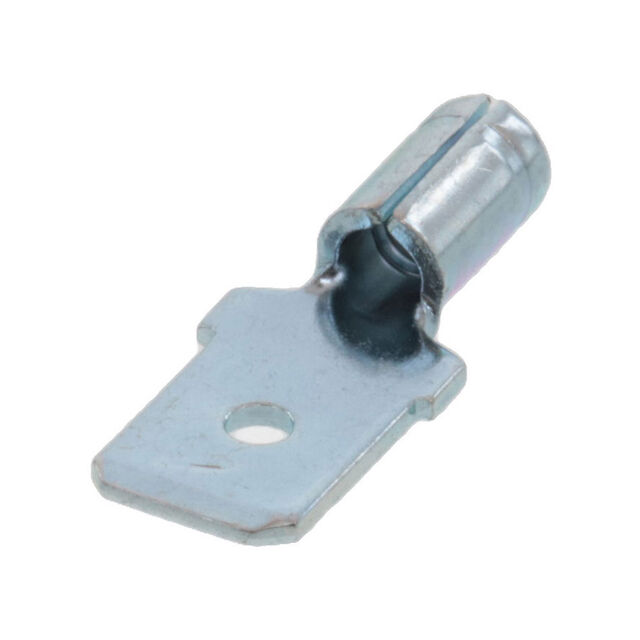

0190220026

Active

Molex

CONN QC TAB 14-16AWG 0.250 CRIMP

Search across all available documentation for this part.

Active

Molex

CONN QC TAB 14-16AWG 0.250 CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Tab Width	Tab Width	Gender	Mounting Type	Tab Thickness	Tab Thickness	Terminal Type	Contact Finish	Contact Material
Molex 0190220015	Crimp	Non-Insulated	12 AWG	10 AWG	19.43 mm	0.765 in	7.8 mm	0.307 in	6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220118	Crimp	Non-Insulated	12 AWG	10 AWG	19.43 mm	0.765 in	7.8 mm	0.307 in	6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220022	Crimp	Non-Insulated			16 mm	0.63 "	6.22 mm	0.245 in	4.75 mm	0.187 in	Male	Free Hanging (In-Line)	0.02 "	0.51 mm	Standard	Zinc	Brass
Molex 0190220009	Crimp	Non-Insulated	22 AWG	17.5 AWG	16 mm	0.63 "	6.22 mm	0.245 in	4.75 mm	0.187 in	Male	Free Hanging (In-Line)	0.02 "	0.51 mm	Standard	Zinc	Brass
Molex 0190220006	Crimp	Non-Insulated	22 AWG	17.5 AWG	16 mm	0.63 "	6.22 mm	0.245 in	4.75 mm	0.187 in	Male	Free Hanging (In-Line)	0.02 "	0.51 mm	Standard	Zinc	Brass
Molex 0190220119	Crimp	Non-Insulated			18.34 mm	0.722 in			6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220017	Crimp	Non-Insulated	12 AWG	10 AWG	19.43 mm	0.765 in	7.8 mm	0.307 in	6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220116	Crimp	Non-Insulated	22 AWG	17.5 AWG	18.34 mm	0.722 in			6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass
Molex 0190220026	Crimp	Non-Insulated			18.34 mm	0.722 in			6.35 mm	0.25 in	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Zinc	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	8000	$ 0.15

General part information

0.250" (6.35mm) Quick Connect Male 14-16 AWG Crimp Connector Non-Insulated
