AHDP02-24-31PR-BRA

Active

Amphenol Sine Systems Corp

31 POSITION PANEL MOUNT RECEPTAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AHDP02-24-31PR-BRA

Active

Amphenol Sine Systems Corp

31 POSITION PANEL MOUNT RECEPTAC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDP02-24-31PR-BRA

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	31
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert [Max]	31
Shell Size - Insert [Min]	24
Shielding	Unshielded
Type	For Male Pins

AHDP02 Series

Part	Primary Material	Number of Positions	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Contact Size	Contact Type	Fastening Type	Note	Insert Material	Type	Shell Size - Insert	Ingress Protection	Connector Type	Housing Color	Contact Shape	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max] [diameter]	Features	Contact Size
Amphenol Sine Systems Corp AHDP02-24-21PN-STA	Plastic	21	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins	24-21	IP68 IP69K	Receptacle Housing	Black	Circular
Amphenol Sine Systems Corp AHDP02-24-23PT-BRA	Plastic	23	Keyed	Unshielded	-55 °C	125 °C	Flange	16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins		IP68 IP69K	Receptacle Housing	Black	Circular	24	23
Amphenol Sine Systems Corp AHDP02-24-14PR-STA	Plastic	14	Keyed	Unshielded	-55 °C	125 °C	Flange		Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins	24-14	IP68 IP69K	Receptacle Housing	Black	Circular			12 (1) 16 (11) 4 (1)
Amphenol Sine Systems Corp AHDP02-24-29SR-STA	Plastic	29	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16 20	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Female Sockets		IP68 IP69K	Receptacle Housing	Black	Circular				24	29
Amphenol Sine Systems Corp AHDP02-24-27PR-STA	Plastic	27	Keyed	Unshielded	-55 °C	125 °C	Flange		Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins		IP68 IP69K	Receptacle Housing	Black	Circular	27	24
Amphenol Sine Systems Corp AHDP02-24-21PR-BRA	Plastic	21	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins	24-21	IP67 IP69K	Receptacle Housing	Black	Circular						Backshell
Amphenol Sine Systems Corp AHDP02-24-19SN-STA	Plastic	19	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Female Sockets	24-19	IP68 IP69K	Receptacle Housing	Black	Circular							6 13
Amphenol Sine Systems Corp AHDP02-24-21PR-SRA		21	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins	24-21	IP67 IP69K	Receptacle Housing	Black	Circular
Amphenol Sine Systems Corp AHDP02-24-18PR-STA	Plastic	18	Keyed	Unshielded	-55 °C	125 °C	Flange		Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins		IP68 IP69K	Receptacle Housing	Black	Circular	18	24	12 (3) 16 (14) 8 (1)
Amphenol Sine Systems Corp AHDP02-24-31PR-BRA	Plastic	31	Keyed	Unshielded	-55 °C	125 °C	Flange	16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins		IP67 IP69K	Receptacle Housing	Black	Circular	31	24				Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.08
		10	$ 11.96
		25	$ 11.21
		50	$ 10.68
		100	$ 10.17
		250	$ 9.53
		500	$ 9.08
		1000	$ 8.65

Description

General part information

AHDP02 Series

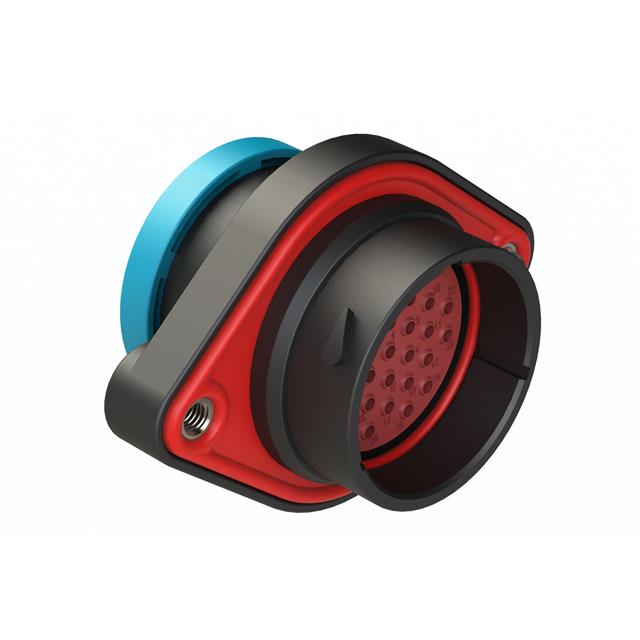

31 Position Circular Connector Receptacle Housing Panel Mount Backshell
