AHDP02-24-14PR-STA

Active

Amphenol Sine Systems Corp

14 POSITION PANEL MOUNT RECEPTA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

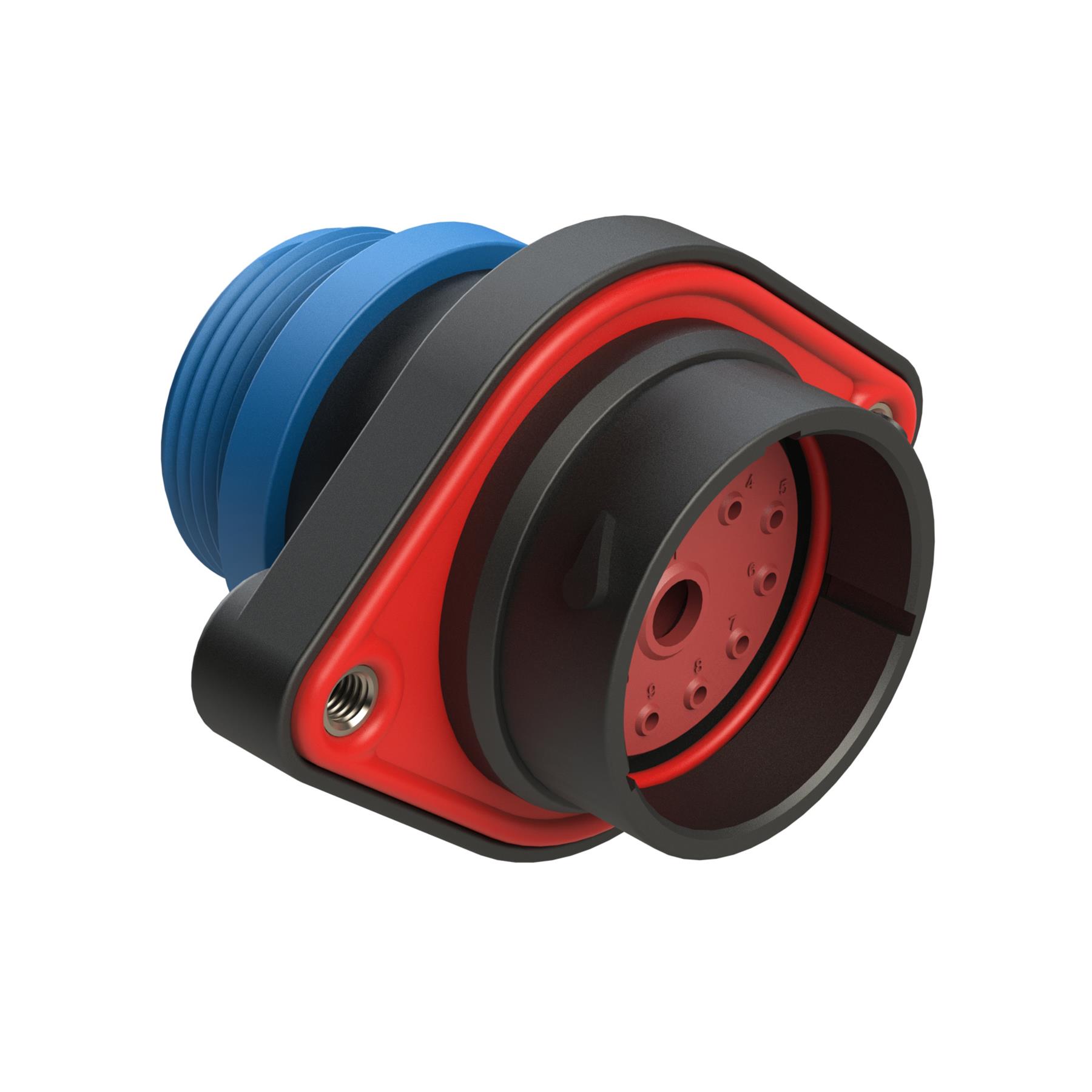

AHDP02-24-14PR-STA

Active

Amphenol Sine Systems Corp

14 POSITION PANEL MOUNT RECEPTA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDP02-24-14PR-STA

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 (11), 4 (1), 12 (1)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	24-14
Shielding	Unshielded
Type	For Male Pins

AHDP02 Series

Part	Primary Material	Number of Positions	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Contact Size	Contact Type	Fastening Type	Note	Insert Material	Type	Shell Size - Insert	Ingress Protection	Connector Type	Housing Color	Contact Shape	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max] [diameter]	Features	Contact Size
Amphenol Sine Systems Corp AHDP02-24-21PN-STA	Plastic	21	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins	24-21	IP68 IP69K	Receptacle Housing	Black	Circular
Amphenol Sine Systems Corp AHDP02-24-23PT-BRA	Plastic	23	Keyed	Unshielded	-55 °C	125 °C	Flange	16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins		IP68 IP69K	Receptacle Housing	Black	Circular	24	23
Amphenol Sine Systems Corp AHDP02-24-14PR-STA	Plastic	14	Keyed	Unshielded	-55 °C	125 °C	Flange		Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins	24-14	IP68 IP69K	Receptacle Housing	Black	Circular			12 (1) 16 (11) 4 (1)
Amphenol Sine Systems Corp AHDP02-24-29SR-STA	Plastic	29	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16 20	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Female Sockets		IP68 IP69K	Receptacle Housing	Black	Circular				24	29
Amphenol Sine Systems Corp AHDP02-24-27PR-STA	Plastic	27	Keyed	Unshielded	-55 °C	125 °C	Flange		Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins		IP68 IP69K	Receptacle Housing	Black	Circular	27	24
Amphenol Sine Systems Corp AHDP02-24-21PR-BRA	Plastic	21	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins	24-21	IP67 IP69K	Receptacle Housing	Black	Circular						Backshell
Amphenol Sine Systems Corp AHDP02-24-19SN-STA	Plastic	19	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Female Sockets	24-19	IP68 IP69K	Receptacle Housing	Black	Circular							6 13
Amphenol Sine Systems Corp AHDP02-24-21PR-SRA		21	Keyed	Unshielded	-55 °C	125 °C	Flange	12 16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins	24-21	IP67 IP69K	Receptacle Housing	Black	Circular
Amphenol Sine Systems Corp AHDP02-24-18PR-STA	Plastic	18	Keyed	Unshielded	-55 °C	125 °C	Flange		Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins		IP68 IP69K	Receptacle Housing	Black	Circular	18	24	12 (3) 16 (14) 8 (1)
Amphenol Sine Systems Corp AHDP02-24-31PR-BRA	Plastic	31	Keyed	Unshielded	-55 °C	125 °C	Flange	16	Crimp	Bayonet Lock	Contacts Not Included	Thermoplastic	For Male Pins		IP67 IP69K	Receptacle Housing	Black	Circular	31	24				Backshell
