0192030182

Active

Molex

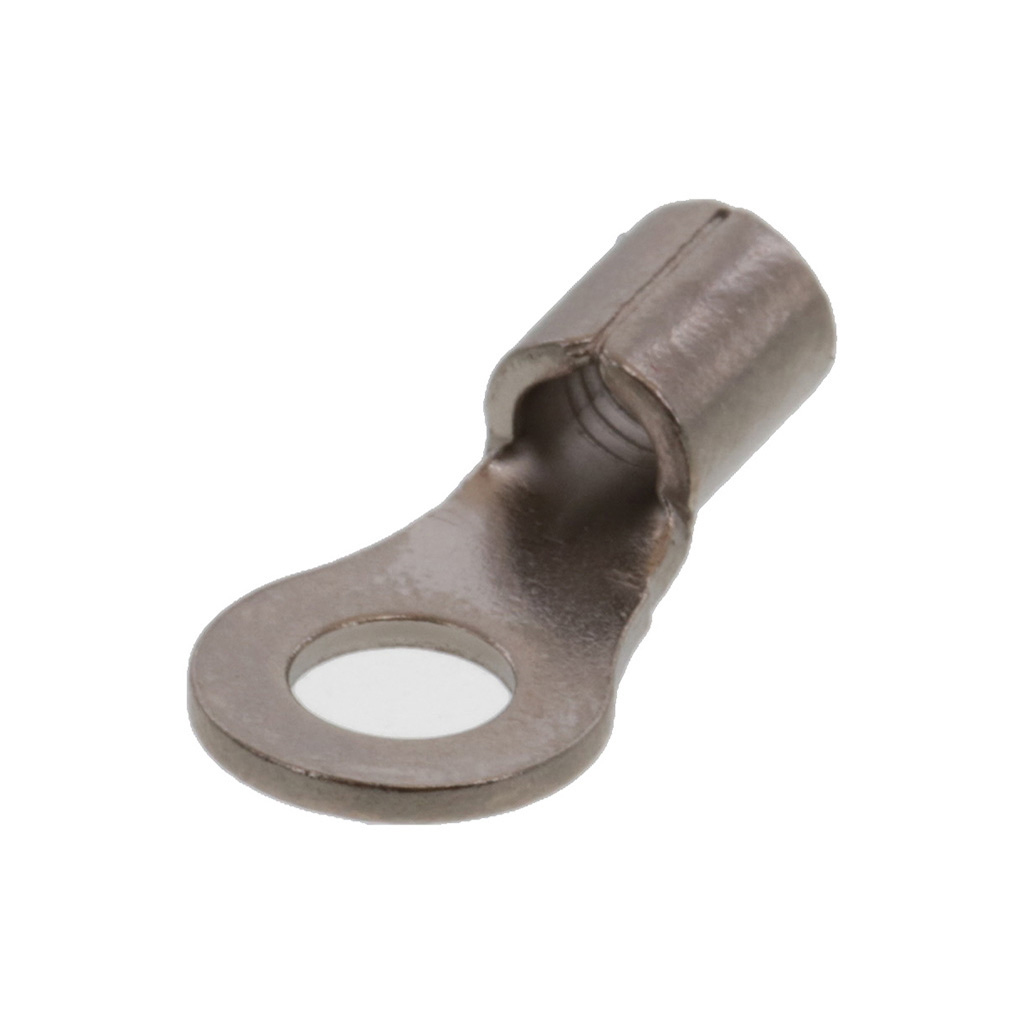

CONN RING CIRC 10-12AWG #1/4

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0192030182

Active

Molex

CONN RING CIRC 10-12AWG #1/4

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0192030182

Contact Finish	Nickel
Contact Material	Copper
Features	Brazed Seam, High Temperature
Insulation	Non-Insulated
Length - Overall [x]	24.18 mm
Length - Overall [x]	0.952 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.04 in
Thickness	1.02 mm
Width - Outer Edges	13.46 mm
Width - Outer Edges [y]	0.53 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

019203 Series

Part	Mounting Type	Insulation	Terminal Type	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Features	Stud/Tab Size	Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall	Length - Overall [x]	Stud/Tab Size	Thickness	Thickness	Contact Finish	Number of Wire Entries	Width - Outer Edges
Molex 0192030160	Free Hanging (In-Line)	Non-Insulated	Circular	19.94 mm	0.785 in	12 AWG	10 AWG	Nickel	0.375 in	9.53 mm	High Temperature	8 Stud	Crimp
Molex 0192030079	Free Hanging (In-Line)	Non-Insulated	Circular					Nickel			High Temperature		Crimp	11.86 mm	0.467 in	21.26 mm	0.837 "	0.25 Stud
Molex 0192030099	Free Hanging (In-Line)	Non-Insulated	Circular	19.94 mm	0.785 in	12 AWG	10 AWG	Copper	0.375 in	9.53 mm	Brazed Seam High Temperature		Crimp					10 Stud	0.04 in	1.02 mm	Nickel
Molex 0192030086	Free Hanging (In-Line)	Non-Insulated	Circular					Nickel			High Temperature		Crimp	7.92 mm	0.312 in	16.38 mm	0.645 in	10 Stud
Molex 0192030385		Non-Insulated	Butt Splice Individual Openings Inline								High Temperature		Crimp									2
Molex 0192030166		Non-Insulated	Butt Splice Individual Openings Inline			22 AWG	17.5 AWG				High Temperature		Crimp									2
Molex 0192030100	Free Hanging (In-Line)	Non-Insulated	Circular	19.94 mm	0.785 in	12 AWG	10 AWG	Copper	0.375 in	9.53 mm	Brazed Seam High Temperature		Crimp					10 Stud	0.04 in	1.02 mm	Nickel
Molex 0192030158	Free Hanging (In-Line)	Non-Insulated	Circular		26.82 mm	12 AWG	10 AWG	Copper			Brazed Seam High Temperature	3/8 Stud	Crimp	15.04 mm	0.592 in		1.056 in		0.04 in	1.02 mm	Nickel
Molex 0192030182	Free Hanging (In-Line)	Non-Insulated	Circular		24.18 mm	12 AWG	10 AWG	Copper			Brazed Seam High Temperature		Crimp		0.53 in		0.952 in	0.25 Stud	0.04 in	1.02 mm	Nickel		13.46 mm
Molex 0192030171		Non-Insulated	Butt Splice Individual Openings Inline								High Temperature		Crimp									2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 0.25

Description

General part information

019203 Series

Ring Terminal Connector 1/4 Stud Circular 10-12 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
