0192030385
ActiveMolex

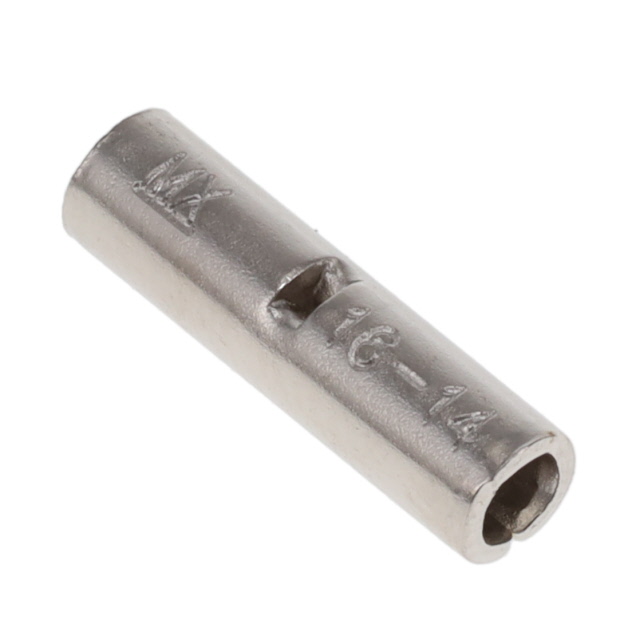

CONN SPLICE 14-16 AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0192030385
ActiveMolex
CONN SPLICE 14-16 AWG CRIMP
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0192030385 |
|---|---|
| Features | High Temperature |
| Insulation | Non-Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | Crimp |
019203 Series
| Part | Mounting Type | Insulation | Terminal Type | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Width - Outer Edges [x] | Width - Outer Edges [x] | Features | Stud/Tab Size | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Overall | Length - Overall [x] | Stud/Tab Size | Thickness | Thickness | Contact Finish | Number of Wire Entries | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Free Hanging (In-Line) | Non-Insulated | Circular | 19.94 mm | 0.785 in | 12 AWG | 10 AWG | Nickel | 0.375 in | 9.53 mm | High Temperature | 8 Stud | Crimp | ||||||||||
Molex | Free Hanging (In-Line) | Non-Insulated | Circular | Nickel | High Temperature | Crimp | 11.86 mm | 0.467 in | 21.26 mm | 0.837 " | 0.25 Stud | ||||||||||||
Molex | Free Hanging (In-Line) | Non-Insulated | Circular | 19.94 mm | 0.785 in | 12 AWG | 10 AWG | Copper | 0.375 in | 9.53 mm | Brazed Seam High Temperature | Crimp | 10 Stud | 0.04 in | 1.02 mm | Nickel | |||||||
Molex | Free Hanging (In-Line) | Non-Insulated | Circular | Nickel | High Temperature | Crimp | 7.92 mm | 0.312 in | 16.38 mm | 0.645 in | 10 Stud | ||||||||||||
Molex | Non-Insulated | Butt Splice Individual Openings Inline | High Temperature | Crimp | 2 | ||||||||||||||||||
Molex | Non-Insulated | Butt Splice Individual Openings Inline | 22 AWG | 17.5 AWG | High Temperature | Crimp | 2 | ||||||||||||||||
Molex | Free Hanging (In-Line) | Non-Insulated | Circular | 19.94 mm | 0.785 in | 12 AWG | 10 AWG | Copper | 0.375 in | 9.53 mm | Brazed Seam High Temperature | Crimp | 10 Stud | 0.04 in | 1.02 mm | Nickel | |||||||
Molex | Free Hanging (In-Line) | Non-Insulated | Circular | 26.82 mm | 12 AWG | 10 AWG | Copper | Brazed Seam High Temperature | 3/8 Stud | Crimp | 15.04 mm | 0.592 in | 1.056 in | 0.04 in | 1.02 mm | Nickel | |||||||
Molex | Free Hanging (In-Line) | Non-Insulated | Circular | 24.18 mm | 12 AWG | 10 AWG | Copper | Brazed Seam High Temperature | Crimp | 0.53 in | 0.952 in | 0.25 Stud | 0.04 in | 1.02 mm | Nickel | 13.46 mm | |||||||
Molex | Non-Insulated | Butt Splice Individual Openings Inline | High Temperature | Crimp | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.08 | |||
| 3000 | $ 0.08 | |||
Description
General part information
019203 Series
Terminal Butt Splice, Inline, Individual Openings Connector Crimp 14-16 AWG
