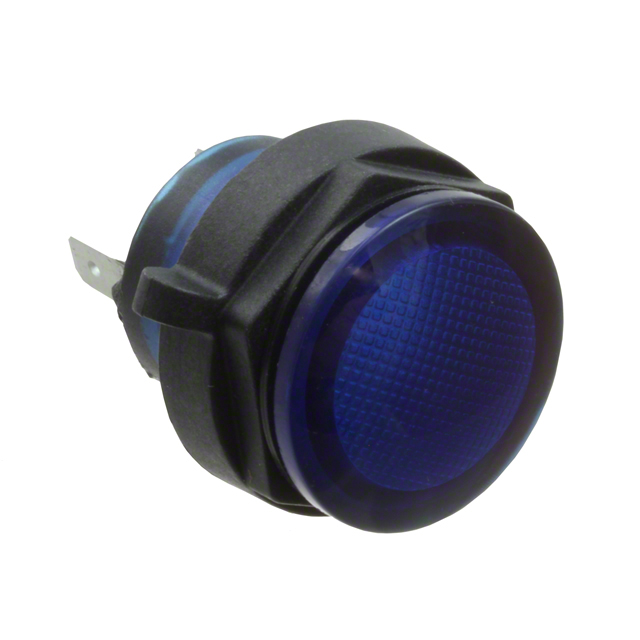

CNX722C600120T

Active

Visual Communications Company - VCC

LED PNL INDICATOR BLUE 120V IP67

Deep-Dive with AI

Search across all available documentation for this part.

CNX722C600120T

Active

Visual Communications Company - VCC

LED PNL INDICATOR BLUE 120V IP67

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CNX722C600120T

Current	8 mA
Ingress Protection	IP67
Lamp Color	Blue
Lens Color	Blue
Lens Size [diameter]	25.6 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	67 mcd
Panel Cutout Dimensions [x]	23.11 mm
Panel Cutout Dimensions [x]	0.91 in
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	LED
Voltage	120 V

CNX722 Series

Part	Ratings	Millicandela Rating	Voltage	Ingress Protection	Lens Color	Type	Termination Style	Lamp Color	Lens Style	Current	Lens Transparency	Lens Size [diameter]	Panel Cutout Shape	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Voltage [Min]	Voltage [Max]	Mounting Type	Lens Size	Color	Configuration	Millicandela Rating [Min]	Millicandela Rating [Max]
Visual Communications Company - VCC CNX722C500120T	AC	924 mcd	120 V	IP67	Green	LED	Quick Connect - 0.187" (4.7mm)	Green	Round with Domed Top	8 mA	Clear	25.6 mm	Round	23.11 mm	0.91 in
Visual Communications Company - VCC CNX722C400FVT	DC	140 mcd		IP67 NEMA 6P		LED	Solder Lug	Yellow	Round with Domed Top			25.6 mm	Round	22.35 mm	0.88 "	5 V	28 V
Visual Communications Company - VCC CNX722C401120W	AC	245 mcd	120 V	IP67	Yellow	LED		Yellow	Round with Domed Top	8 mA	Clear	25.6 mm	Round	23.11 mm	0.91 in
Visual Communications Company - VCC CNX722C600FVB	DC	495 mcd		IP67		LED	Screw Terminal	Blue	Round with Domed Top				Round	23.11 mm	0.91 in	5 V	28 V
Visual Communications Company - VCC CNX722C401FVW						Rigid			Round with Domed Top									Board/Panel Mount Snap In	25.65 mm	Yellow	Single
Visual Communications Company - VCC CNX722C600120T	AC	67 mcd	120 V	IP67	Blue	LED	Quick Connect - 0.187" (4.7mm)	Blue	Round with Domed Top	8 mA	Clear	25.6 mm	Round	23.11 mm	0.91 in
Visual Communications Company - VCC CNX722C900FVW	DC			IP67 NEMA 6P		LED		White	Round with Domed Top			25.6 mm	Round	22.35 mm	0.88 "	5 V	28 V					1300 mcd	1700 mcd
Visual Communications Company - VCC CNX722C900FVT	DC			IP67 NEMA 6P		LED	Solder Lug	White	Round with Domed Top			25.6 mm	Round	22.35 mm	0.88 "	5 V	28 V					1300 mcd	1700 mcd
Visual Communications Company - VCC CNX722C200FVW	DC			IP67 NEMA 6P		LED		Red	Round with Domed Top			25.6 mm	Round	22.35 mm	0.88 "	5 V	28 V					1300 mcd	1900 mcd
Visual Communications Company - VCC CNX722C600120W	AC	67 mcd	120 V	IP67	Blue	LED		Blue	Round with Domed Top	8 mA	Clear	25.6 mm	Round	23.11 mm	0.91 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.21
		10	$ 12.23
		100	$ 10.27
		500	$ 9.44
		1000	$ 8.91

Description

General part information

CNX722 Series

LED Panel Indicator Blue Clear 120V 8mA Quick Connect - 0.187" (4.7mm)
