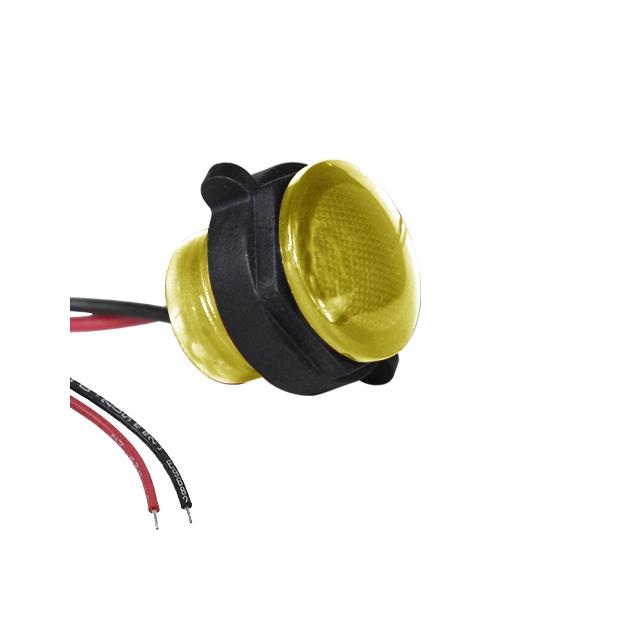

CNX722C401FVW

Active

Visual Communications Company - VCC

PED PMI FLEXVOLT 22MM YW WIRE LD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CNX722C401FVW

Active

Visual Communications Company - VCC

PED PMI FLEXVOLT 22MM YW WIRE LD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CNX722C401FVW

Color	Yellow
Configuration	Single
Lens Size	25.65 mm
Lens Style	Round with Domed Top
Mounting Type	Snap In, Board/Panel Mount
Type	Rigid

CNX722 Series

Part	Ratings	Millicandela Rating	Voltage	Ingress Protection	Lens Color	Type	Termination Style	Lamp Color	Lens Style	Current	Lens Transparency	Lens Size [diameter]	Panel Cutout Shape	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Voltage [Min]	Voltage [Max]	Mounting Type	Lens Size	Color	Configuration	Millicandela Rating [Min]	Millicandela Rating [Max]
Visual Communications Company - VCC CNX722C500120T	AC	924 mcd	120 V	IP67	Green	LED	Quick Connect - 0.187" (4.7mm)	Green	Round with Domed Top	8 mA	Clear	25.6 mm	Round	23.11 mm	0.91 in
Visual Communications Company - VCC CNX722C400FVT	DC	140 mcd		IP67 NEMA 6P		LED	Solder Lug	Yellow	Round with Domed Top			25.6 mm	Round	22.35 mm	0.88 "	5 V	28 V
Visual Communications Company - VCC CNX722C401120W	AC	245 mcd	120 V	IP67	Yellow	LED		Yellow	Round with Domed Top	8 mA	Clear	25.6 mm	Round	23.11 mm	0.91 in
Visual Communications Company - VCC CNX722C600FVB	DC	495 mcd		IP67		LED	Screw Terminal	Blue	Round with Domed Top				Round	23.11 mm	0.91 in	5 V	28 V
Visual Communications Company - VCC CNX722C401FVW						Rigid			Round with Domed Top									Board/Panel Mount Snap In	25.65 mm	Yellow	Single
Visual Communications Company - VCC CNX722C600120T	AC	67 mcd	120 V	IP67	Blue	LED	Quick Connect - 0.187" (4.7mm)	Blue	Round with Domed Top	8 mA	Clear	25.6 mm	Round	23.11 mm	0.91 in
Visual Communications Company - VCC CNX722C900FVW	DC			IP67 NEMA 6P		LED		White	Round with Domed Top			25.6 mm	Round	22.35 mm	0.88 "	5 V	28 V					1300 mcd	1700 mcd
Visual Communications Company - VCC CNX722C900FVT	DC			IP67 NEMA 6P		LED	Solder Lug	White	Round with Domed Top			25.6 mm	Round	22.35 mm	0.88 "	5 V	28 V					1300 mcd	1700 mcd
Visual Communications Company - VCC CNX722C200FVW	DC			IP67 NEMA 6P		LED		Red	Round with Domed Top			25.6 mm	Round	22.35 mm	0.88 "	5 V	28 V					1300 mcd	1900 mcd
Visual Communications Company - VCC CNX722C600120W	AC	67 mcd	120 V	IP67	Blue	LED		Blue	Round with Domed Top	8 mA	Clear	25.6 mm	Round	23.11 mm	0.91 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.97
		10	$ 11.29
		100	$ 9.49
		500	$ 8.71
		1000	$ 8.23

Description

General part information

CNX722 Series

Light Pipe Single Yellow Rigid Board/Panel Mount, Snap In
