10076801-404T06LF

Active

Amphenol ICC (FCI)

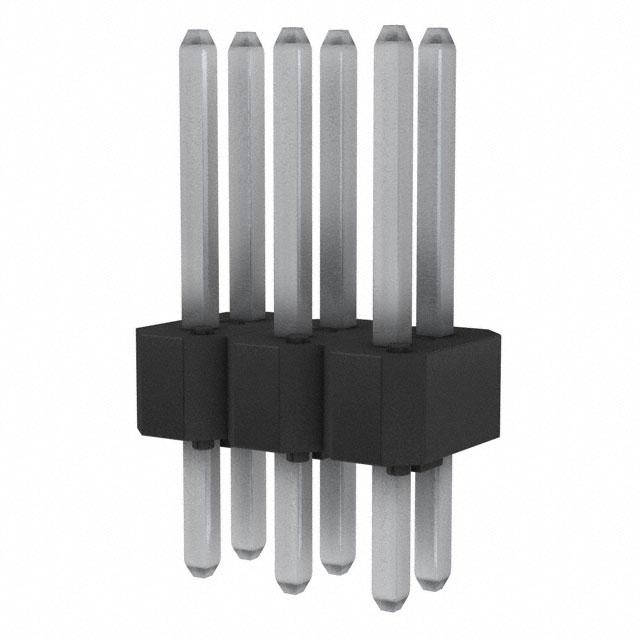

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet bus-12-059 Other Related Document

10076801-404T06LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet bus-12-059 Other Related Document

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10076801-404T06LF

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	0.266 in
Contact Length - Mating	6.75 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.112 in
Insulation Height	2.85 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.496 in
Overall Contact Length	12.6 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

10076801 Series

Part	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Fastening Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Material	Insulation Height	Insulation Height	Number of Positions Loaded	Termination	Contact Type	Overall Contact Length	Overall Contact Length	Shrouding	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Contact Shape	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Length - Mating	Features	Number of Positions
Amphenol ICC (FCI) 10076801-101-06LF	Tin	30 Áin	0.76 Ám	Gold or Gold GXT™	3 A	6	Push-Pull	Black	2 çm	78.7 çin	2.5 mm	0.098 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.44 in	11.18 mm	Unshrouded	0.1 in	2.54 mm	2	0.23 in	5.84 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole
Amphenol ICC (FCI) 10076801-105-40LF	Tin	30 Áin	0.76 Ám	Gold or Gold GXT™	3 A	40	Push-Pull	Black	2 çm	78.7 çin	3 mm	0.118 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.533 in	13.55 mm	Unshrouded	0.1 in	2.54 mm	2		7.7 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole	0.303 in
Amphenol ICC (FCI) 10076801-101A20LF	Tin	30 Áin	0.76 Ám	Gold or Gold GXT™	3 A	20	Push-Pull	Black	2 çm	78.7 çin	2.5 mm	0.098 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.44 in	11.18 mm	Unshrouded	0.1 in	2.54 mm	2	0.23 in	5.84 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole		Pick and Place
Amphenol ICC (FCI) 10076801-101-12LF	Tin	30 Áin	0.76 Ám	Gold or Gold GXT™	3 A	12	Push-Pull	Black	2 çm	78.7 çin	2.5 mm	0.098 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.44 in	11.18 mm	Unshrouded	0.1 in	2.54 mm	2	0.23 in	5.84 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole
Amphenol ICC (FCI) 10076801-402-04LF	Tin	78.7 µin	2 µm		3 A	4	Push-Pull	Black	2 çm	78.7 çin	2.5 mm	0.098 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.476 in	12.09 mm	Unshrouded	0.1 in	2.54 mm	2		6.75 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole	0.266 in
Amphenol ICC (FCI) 10076801-101-04LF	Tin	30 Áin	0.76 Ám	Gold or Gold GXT™	3 A	4	Push-Pull	Black	2 çm	78.7 çin	2.5 mm	0.098 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.44 in	11.18 mm	Unshrouded	0.1 in	2.54 mm	2	0.23 in	5.84 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole
Amphenol ICC (FCI) 10076801-105-20LF	Tin	30 Áin	0.76 Ám	Gold or Gold GXT™	3 A	20	Push-Pull	Black	2 çm	78.7 çin	3 mm	0.118 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.533 in	13.55 mm	Unshrouded	0.1 in	2.54 mm	2		7.7 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole	0.303 in
Amphenol ICC (FCI) 10076801-101-72LF	Tin	30 Áin	0.76 Ám	Gold or Gold GXT™	3 A	72	Push-Pull	Black	2 çm	78.7 çin	2.5 mm	0.098 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.44 in	11.18 mm	Unshrouded	0.1 in	2.54 mm	2	0.23 in	5.84 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole
Amphenol ICC (FCI) 10076801-404T06LF	Tin	78.7 µin	2 µm		3 A	6	Push-Pull	Black	2 çm	78.7 çin	3 mm	0.118 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.496 in	12.6 mm	Unshrouded	0.1 in	2.54 mm	2		6.75 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole	0.266 in
Amphenol ICC (FCI) 10076801-101-16LF	Tin	30 Áin	0.76 Ám	Gold or Gold GXT™	3 A		Push-Pull	Black	2 çm	78.7 çin	2.5 mm	0.098 in	Breakaway Header	Thermoplastic	0.112 in	2.85 mm	All	Solder	Male Pin	0.44 in	11.18 mm	Unshrouded	0.1 in	2.54 mm	2	0.23 in	5.84 mm	Phosphor Bronze	Square	UL94 V-0	-65 ░C	130 °C	2.54 mm	0.1 in	Through Hole			16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1136	$ 0.49
