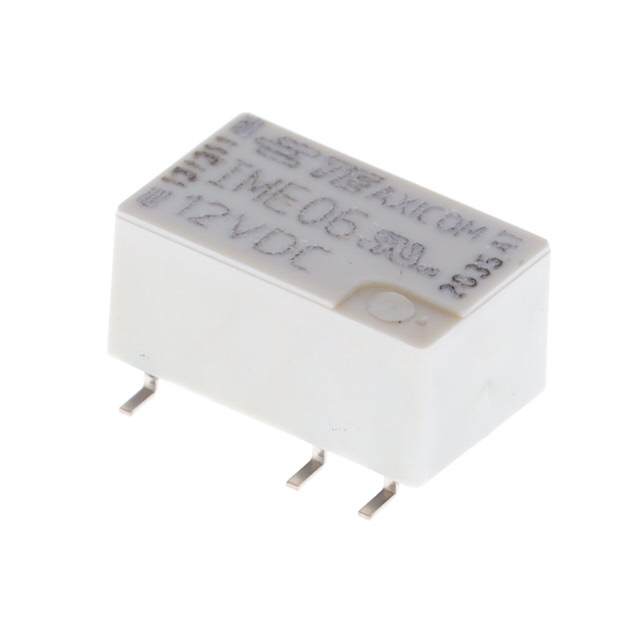

1462043-4

Active

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPST 2A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1462043-4

Active

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPST 2A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1462043-4

Coil Current	11.7 mA
Coil Resistance	1030 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPST-NO (2 Form A)
Contact Material	Palladium (Pd), Gold (Au), Ruthenium (Ru)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Surface Mount
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	3 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	3 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	250 VAC, 220 VDC
Termination Style	Gull Wing

1462043 Series

Part	Coil Current	Operate Time	Mounting Type	Coil Resistance	Contact Form	Switching Voltage	Must Release Voltage	Load - Max Switching	Coil Type	Release Time	Contact Rating (Current)	Relay Type	Seal Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Voltage	Must Operate Voltage
TE Connectivity Potter & Brumfield Relays 1462043-4	11.7 mA	3 ms	Surface Mount	1030 Ohms	DPST-NO (2 Form A)	220 VDC 250 VAC	1.2 VDC	440 W 500 VA	Non Latching	3 ms	2 A	Telecom	Sealed - Hermetically	Gold (Au) Palladium (Pd) Ruthenium (Ru)	85 °C	-40 °C	Gull Wing	12 VDC	9 VDC
TE Connectivity Potter & Brumfield Relays 1462043-7	28.1 mA	3 ms	Through Hole	178 Ohms	DPST-NO (2 Form A)	220 VDC 250 VAC	0.5 VDC	440 W 500 VA	Non Latching	3 ms	2 A	Telecom	Sealed - Hermetically	Gold (Au) Palladium (Pd) Ruthenium (Ru)	85 °C	-40 °C	PC Pin	5 VDC	3.75 VDC
TE Connectivity Potter & Brumfield Relays 1462043-6	31.1 mA	3 ms	Through Hole	145 Ohms	DPST-NO (2 Form A)	220 VDC 250 VAC	0.45 VDC	440 W 500 VA	Non Latching	3 ms	2 A	Telecom	Sealed - Hermetically	Gold (Au) Palladium (Pd) Ruthenium (Ru)	85 °C	-40 °C	PC Pin	4.5 VDC	3.38 VDC
TE Connectivity Potter & Brumfield Relays 1462043-8	11.7 mA	3 ms	Through Hole	1030 Ohms	DPST-NO (2 Form A)	220 VDC 250 VAC	1.2 VDC	440 W 500 VA	Non Latching	3 ms	2 A	Telecom	Sealed - Hermetically	Gold (Au) Palladium (Pd) Ruthenium (Ru)	85 °C	-40 °C	PC Pin	12 VDC	9 VDC
TE Connectivity Potter & Brumfield Relays 1462043-3	28.1 mA	3 ms	Surface Mount	178 Ohms	DPST-NO (2 Form A)	220 VDC 250 VAC	0.5 VDC	440 W 500 VA	Non Latching	3 ms	2 A	Telecom	Sealed - Hermetically	Gold (Au) Palladium (Pd) Ruthenium (Ru)	85 °C	-40 °C	Gull Wing	5 VDC	3.75 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.14
		10	$ 4.82
		25	$ 4.28
		50	$ 4.07
		100	$ 3.85
		250	$ 3.43
		500	$ 3.21
	Tape & Reel (TR)	1000	$ 3.00
		3000	$ 2.94

Description

General part information

1462043 Series

Telecom Relay DPST-NO (2 Form A) Surface Mount
