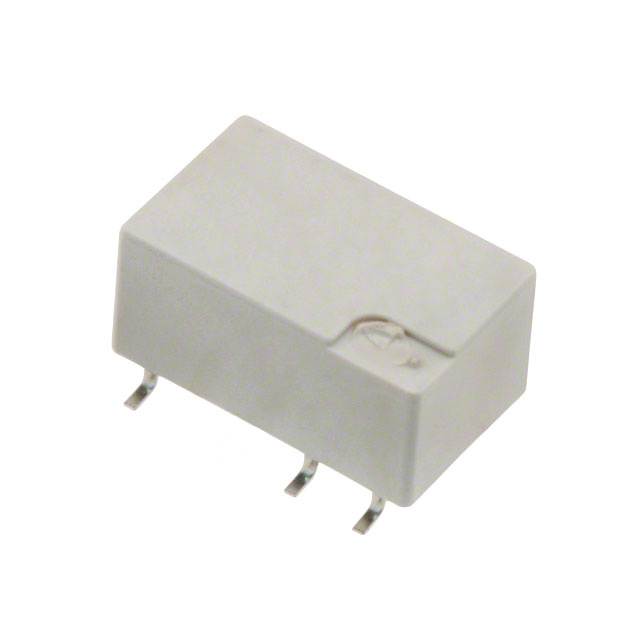

1462043-3
ActiveTE Connectivity Potter & Brumfield Relays
RELAY TELECOM DPST 2A 5V
Deep-Dive with AI
Search across all available documentation for this part.
1462043-3
ActiveTE Connectivity Potter & Brumfield Relays
RELAY TELECOM DPST 2A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1462043-3 |
|---|---|
| Coil Current | 28.1 mA |
| Coil Resistance | 178 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Palladium (Pd), Gold (Au), Ruthenium (Ru) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 3 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | Telecom |
| Release Time | 3 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.53 | |
| 10 | $ 3.31 | |||
| 25 | $ 2.94 | |||
| 50 | $ 2.79 | |||
| 100 | $ 2.65 | |||
| 250 | $ 2.59 | |||
| Digi-Reel® | 1 | $ 3.53 | ||
| 10 | $ 3.31 | |||
| 25 | $ 2.94 | |||
| 50 | $ 2.79 | |||
| 100 | $ 2.65 | |||
| 250 | $ 2.59 | |||
| Tape & Reel (TR) | 1000 | $ 2.59 | ||
Description
General part information
1462043 Series
Telecom Relay DPST-NO (2 Form A) Surface Mount
