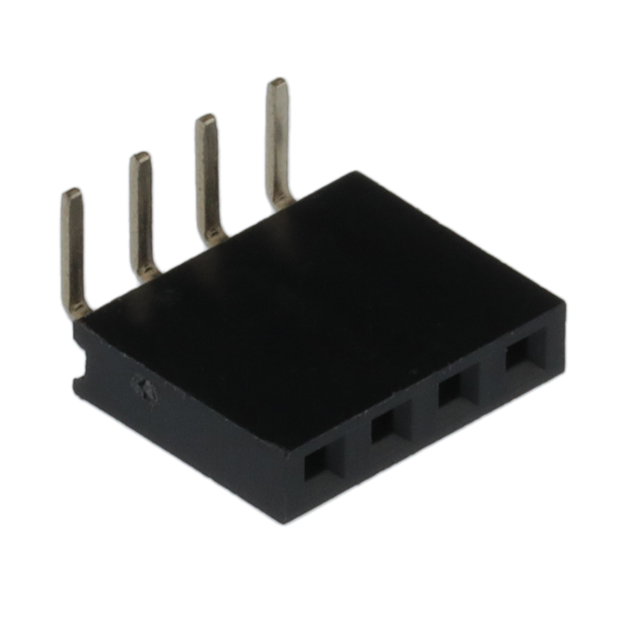

FR20204HBNN
ActiveMETZ CONNECT USA Inc.
RECEPTACLE, THR, SINGLE ROW, .10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FR20204HBNN
ActiveMETZ CONNECT USA Inc.
RECEPTACLE, THR, SINGLE ROW, .10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FR20204HBNN |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 0.114 in |
| Contact Length - Post | 2.9 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.094 in |
| Insulation Height [z] | 2.39 mm |
| Insulation Material | Polyethylene Terephthalate (PET), Polyester |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.52 | |
| 10 | $ 0.46 | |||
| 100 | $ 0.38 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.27 | |||
| 5000 | $ 0.24 | |||
| 10000 | $ 0.22 | |||
Description
General part information
FR20204HB Series
4 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
