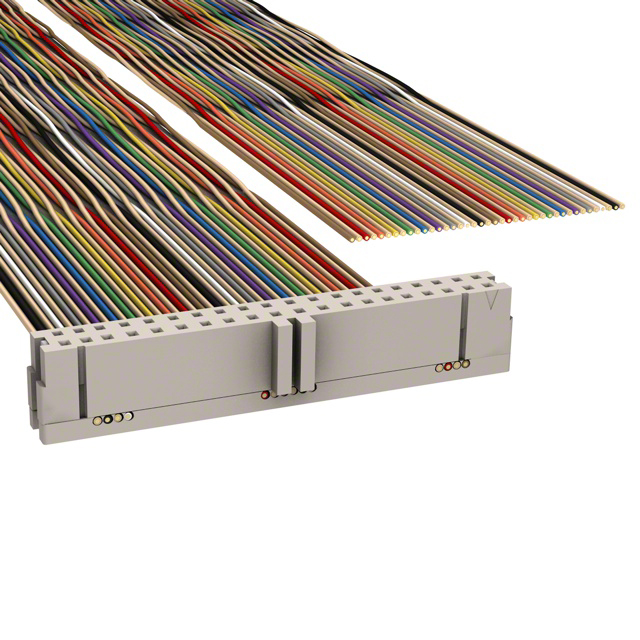

M1TXK-4040K

Active

3M (TC)

IDC CABLE - MSD40K/MC40F/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide 1700 Series +1

M1TXK-4040K

Active

3M (TC)

IDC CABLE - MSD40K/MC40F/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide 1700 Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1TXK-4040K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	1.02 m
Length [x]	3.34 ft
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1TXK Series

Part	Shielding	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Cable Termination	Contact Finish	Connector Type	Color	Number of Positions
3M (TC) M1TXK-1636J	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key	16	0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable
3M (TC) M1TXK-2036R	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Ribbon	20
3M (TC) M1TXK-4036J	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable		40
3M (TC) M1TXK-2040K	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3.34 ft	1.02 m	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Twisted Pair (Flat)	20
3M (TC) M1TXK-1036J	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable		10
3M (TC) M1TXK-1040K	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3.34 ft	1.02 m	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Twisted Pair (Flat)	10
3M (TC) M1TXK-4040K	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3.34 ft	1.02 m	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Twisted Pair (Flat)	40
3M (TC) M1TXK-1440K	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3.34 ft	1.02 m	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Twisted Pair (Flat)	14
3M (TC) M1TXK-2436R	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Ribbon	24
3M (TC) M1TXK-1036R	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Ribbon	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.08
		10	$ 21.66
		25	$ 19.63
		50	$ 18.25
		100	$ 17.00
		250	$ 15.53
		500	$ 14.54

Description

General part information

M1TXK Series

40 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

1700 Series

Datasheet
