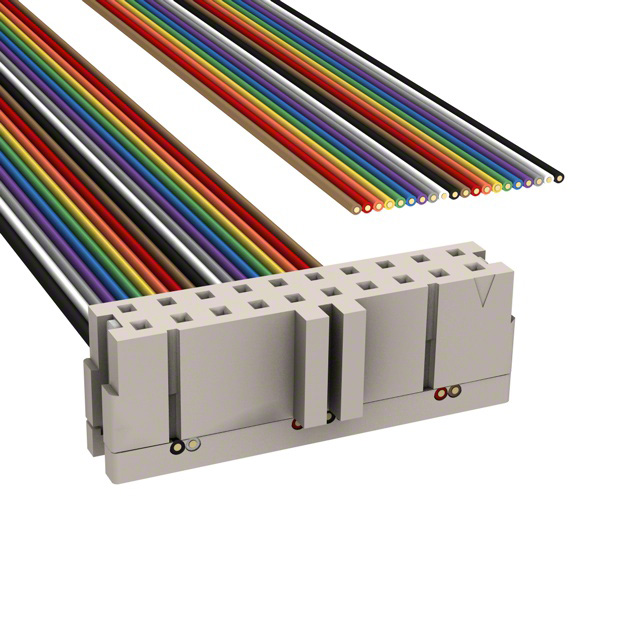

M1TXK-2036R

Active

3M (TC)

IDC CABLE - MSD20K/MC20M/X

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1TXK-2036R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1TXK Series

Part	Shielding	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Cable Termination	Contact Finish	Connector Type	Color	Number of Positions
3M (TC) M1TXK-1636J	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key	16	0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable
3M (TC) M1TXK-2036R	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Ribbon	20
3M (TC) M1TXK-4036J	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable		40
3M (TC) M1TXK-2040K	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3.34 ft	1.02 m	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Twisted Pair (Flat)	20
3M (TC) M1TXK-1036J	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable		10
3M (TC) M1TXK-1040K	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3.34 ft	1.02 m	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Twisted Pair (Flat)	10
3M (TC) M1TXK-4040K	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3.34 ft	1.02 m	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Twisted Pair (Flat)	40
3M (TC) M1TXK-1440K	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3.34 ft	1.02 m	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Twisted Pair (Flat)	14
3M (TC) M1TXK-2436R	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Ribbon	24
3M (TC) M1TXK-1036R	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	Polarizing Key		0.76 Ám	30 Áin	2	IDC	Gold	Socket to Cable	Multiple Ribbon	10
