19370060291

Active

HARTING Technology Group

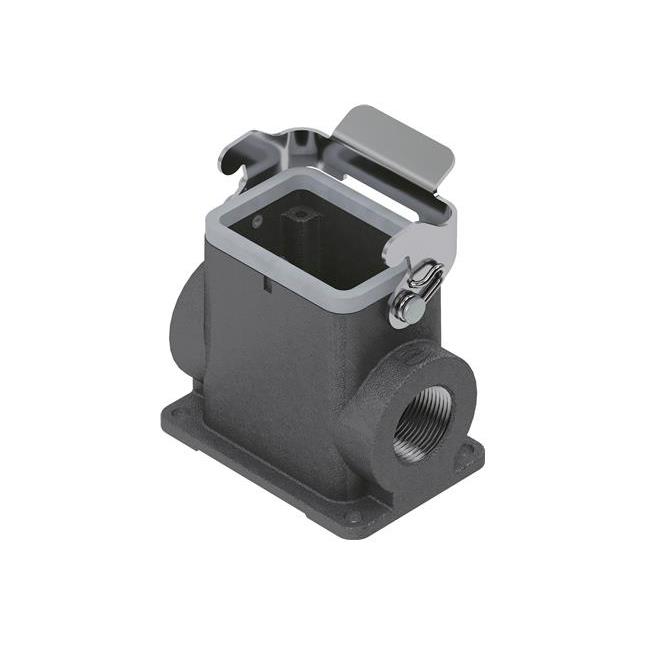

6B MARINE SURFACE MOUNT HOUSING, SINGLE LEVER, HIGH CONSTRUCTION, 2XM25

Search across all available documentation for this part.

Active

HARTING Technology Group

6B MARINE SURFACE MOUNT HOUSING, SINGLE LEVER, HIGH CONSTRUCTION, 2XM25

Technical Specifications

Parameters and characteristics for this part

Specification	19370060291

null

Part	Connector Type	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Housing Color	Size	Lock Location	Thread Size	Housing Material	Housing Finish	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 19370060291
HARTING Technology Group 19370060296	Base - Box Mount	Side Entry	82 mm	57 mm	74 mm	2.244 "	3.228 in	2.913 in	Black	6B	Locking Clip (1) on Hood	M25	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
HARTING Technology Group 19370060716

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector
