19370060296

Active

HARTING Technology Group

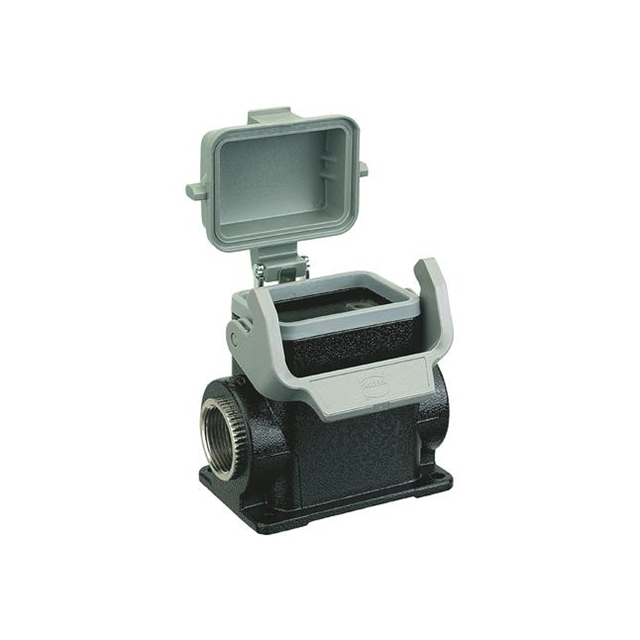

6B MARINE SURFACE MOUNT HOUSING, SINGLE LEVER, HIGH CONSTRUCTION, 2XM25 W/ PLASTIC GRAY COVER

Search across all available documentation for this part.

Active

HARTING Technology Group

6B MARINE SURFACE MOUNT HOUSING, SINGLE LEVER, HIGH CONSTRUCTION, 2XM25 W/ PLASTIC GRAY COVER

Technical Specifications

Parameters and characteristics for this part

Specification	19370060296

Connector Type	Base - Box Mount
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	82 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	74 mm
Size / Dimension [z]	2.913 in
Style	Side Entry
Thread Size	M25

Part	Connector Type	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Housing Color	Size	Lock Location	Thread Size	Housing Material	Housing Finish	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 19370060291
HARTING Technology Group 19370060296	Base - Box Mount	Side Entry	82 mm	57 mm	74 mm	2.244 "	3.228 in	2.913 in	Black	6B	Locking Clip (1) on Hood	M25	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
HARTING Technology Group 19370060716

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M25 6B IP65 - Dust Tight, Water Resistant
