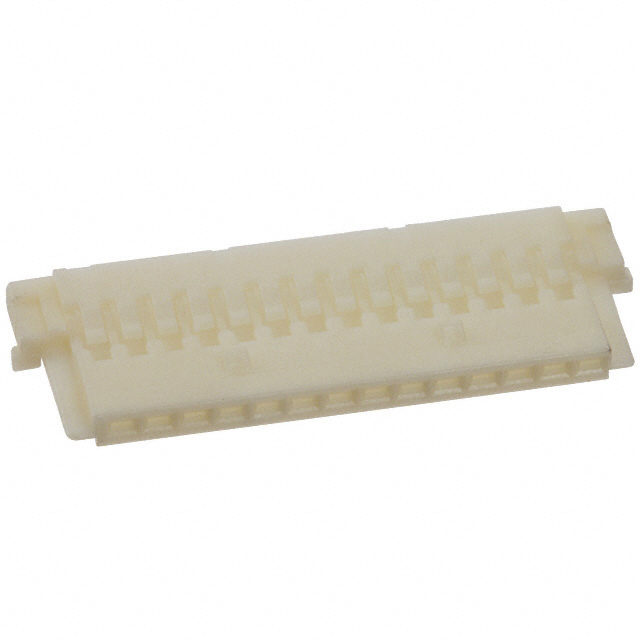

DF19-14S-1C

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 14 CONTACT(S), 1 ROW(S), MALE, 0.039 INCH PITCH, CRIMP TERMINAL, GRAY INSULATOR, PLUG, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 14 CONTACT(S), 1 ROW(S), MALE, 0.039 INCH PITCH, CRIMP TERMINAL, GRAY INSULATOR, PLUG, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Connector Type	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Insulation Height	Insulation Height	Voltage Rating	Contact Type	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Style	Contact Finish - Post	Mounting Type	Contact Material	Shrouding	Pitch [x]	Pitch [x]	Note	Color	Contact Termination
Hirose Electric USA, Inc. DF19-20P-1V(52)	1 çm	39.4 çin	Pick and Place Solder Retention	Receptacle	Nylon Polyamide (PA)	0.039 in	1 mm	20	Solder	Varies by Wire Gauge	1 µm	39.4 µin	1	0.206 in	5.23 mm	100 VAC	Male Pin	UL94 V-0	Beige	All	-35 °C	85 °C	Friction Lock	Board to Cable/Wire	Tin	Surface Mount	Phosphor Bronze	Shrouded - 3 Wall
Hirose Electric USA, Inc. DF19-14S-1C				Plug	Nylon Polyamide (PA)			14					1				Female Socket				-35 °C	85 °C				Free Hanging (In-Line)			0.039 in	1 mm	Contacts Not Included	Beige	Crimp
Hirose Electric USA, Inc. DF19-8S-1C				Plug	Nylon Polyamide (PA)			8					1				Female Socket				-35 °C	85 °C				Free Hanging (In-Line)			0.039 in	1 mm	Contacts Not Included	Beige	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Plug Beige 0.039" (1.00mm)
