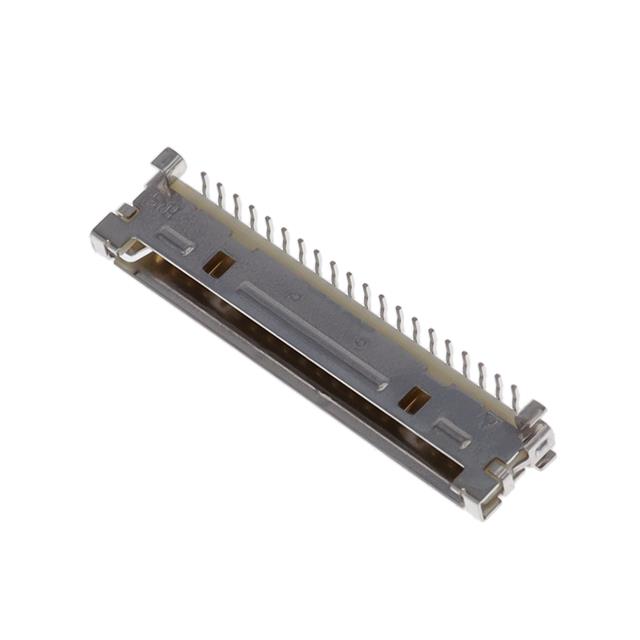

DF19-20P-1V(52)

Active

Hirose Electric USA, Inc.

FFC/FPC CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, NATURAL INSULATOR,

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

FFC/FPC CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, NATURAL INSULATOR,

Technical Specifications

Parameters and characteristics for this part

Specification	DF19-20P-1V(52)

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Phosphor Bronze
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Friction Lock
Features	Pick and Place, Solder Retention
Insulation Color	Beige
Insulation Height	0.206 in
Insulation Height	5.23 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Connector Type	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Insulation Height	Insulation Height	Voltage Rating	Contact Type	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Style	Contact Finish - Post	Mounting Type	Contact Material	Shrouding	Pitch [x]	Pitch [x]	Note	Color	Contact Termination
Hirose Electric USA, Inc. DF19-20P-1V(52)	1 çm	39.4 çin	Pick and Place Solder Retention	Receptacle	Nylon Polyamide (PA)	0.039 in	1 mm	20	Solder	Varies by Wire Gauge	1 µm	39.4 µin	1	0.206 in	5.23 mm	100 VAC	Male Pin	UL94 V-0	Beige	All	-35 °C	85 °C	Friction Lock	Board to Cable/Wire	Tin	Surface Mount	Phosphor Bronze	Shrouded - 3 Wall
Hirose Electric USA, Inc. DF19-14S-1C				Plug	Nylon Polyamide (PA)			14					1				Female Socket				-35 °C	85 °C				Free Hanging (In-Line)			0.039 in	1 mm	Contacts Not Included	Beige	Crimp
Hirose Electric USA, Inc. DF19-8S-1C				Plug	Nylon Polyamide (PA)			8					1				Female Socket				-35 °C	85 °C				Free Hanging (In-Line)			0.039 in	1 mm	Contacts Not Included	Beige	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 20 position 0.039" (1.00mm)
