PXF4051BAB

Active

BULGIN LIMITED

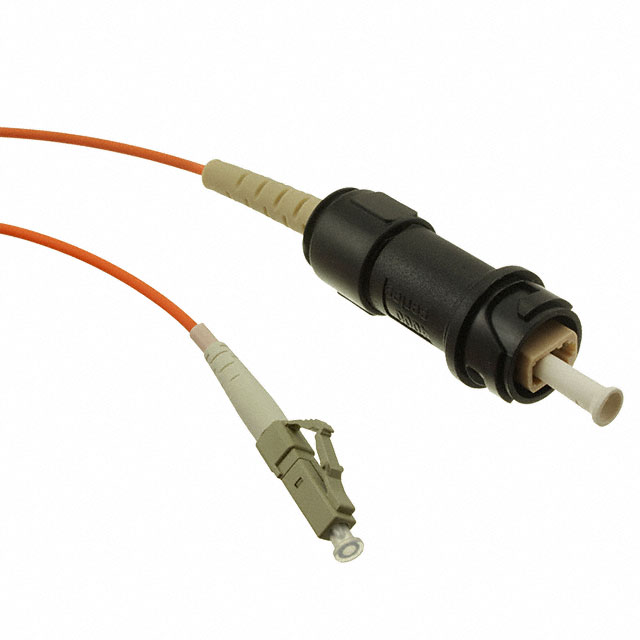

FIBER PATCH CORD; PIN: 1; MULTI MODE SIMPLEX (MM); BAYONET; 10M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PXF4051BAB

Active

BULGIN LIMITED

FIBER PATCH CORD; PIN: 1; MULTI MODE SIMPLEX (MM); BAYONET; 10M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXF4051BAB

2nd Connector	LC
Bend Radius	30 mm
Cable Diameter [diameter]	2 mm
Cable Diameter [diameter]	0.08 in
Cable Type	Buffered Fiber
Color - Cable	Orange
Color - Connectors	Black, Blue
Features	IP66, IP68, IP69K, Low Smoke
Fiber Type	62.5/125
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Length - Overall [x]	10 m
Length - Overall [x]	32.8 ft
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Type	OM1, Multimode, Simplex

buccaneer-4000 Series

...

Part	Contact Type	Material Flammability Rating	Housing Color	Number of Positions	Shell Material	Primary Material	Connector Type	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Type	Mounting Type	Features	Contact Shape	Note	Fastening Type	Length - Overall [x]	Length - Overall [x]	Color - Cable	Bend Radius	Color - Connectors	2nd Connector	Fiber Type	Cable Type	Jacket (Insulation) Material	Cable Diameter [diameter]	Cable Diameter [diameter]
BULGIN LIMITED PXP4011/04P/3540	Crimp and Solder Cup	UL94 V-0	Black	4	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Male Pins	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4011/08S/6570	Crimp and Solder Cup	UL94 V-0	Black	8	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4010/10P/5560	Crimp and Solder Cup	UL94 V-0	Black Blue	10	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Plug Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Male Pins	Free Hanging (In-Line)	Backshell Coupling Nut UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4010/12S/3035	Crimp and Solder Cup	UL94 V-0	Black Blue	12	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Plug Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell Coupling Nut UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXF4051BAB										-25 °C	70 °C		Multimode OM1 Simplex		IP66 IP68 IP69K Low Smoke				10 m	32.8 ft	Orange	30 mm	Black Blue	LC	62.5/125	Buffered Fiber	Poly-Vinyl Chloride (PVC)	2 mm	0.08 in
BULGIN LIMITED PXP4010/10S/6065	Crimp and Solder Cup	UL94 V-0	Black Blue	10	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Plug Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell Coupling Nut UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4011/10P/4550	Crimp and Solder Cup	UL94 V-0	Black	10	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Male Pins	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4011/02P/6065	Crimp and Solder Cup	UL94 V-0	Black	2	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Male Pins	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4010/12S/6570	Crimp and Solder Cup	UL94 V-0	Black Blue	12	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Plug Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell Coupling Nut UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4011/10S/5055	Crimp and Solder Cup	UL94 V-0	Black	10	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 92.46
TME	N/A	1	$ 61.81
		3	$ 55.63
		5	$ 49.45

Description

General part information

buccaneer-4000 Series

Cable Fiber Optic LC To LC 62.5/125 32.8' (10.0m)
