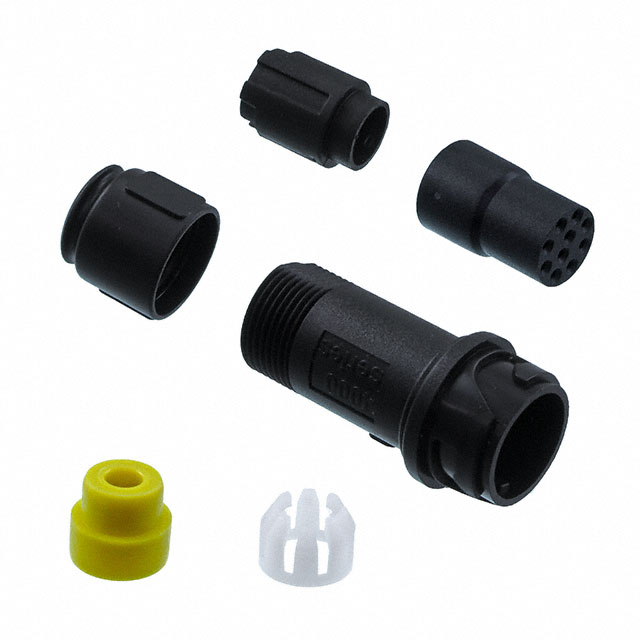

PXP4011/10S/5055

Active

BULGIN LIMITED

CONN RCPT HSG FMALE 10POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

Documents4000 Series Buccaneer Introduction 4000 Series UL Cert of Compliance +4

PXP4011/10S/5055

Active

BULGIN LIMITED

CONN RCPT HSG FMALE 10POS INLINE

Deep-Dive with AI

Documents4000 Series Buccaneer Introduction 4000 Series UL Cert of Compliance +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXP4011/10S/5055

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Bayonet Lock
Features	UV Resistant, Backshell
Housing Color	Black
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
Shielding	Unshielded
Type	For Female Sockets

buccaneer-4000 Series

...

Part	Contact Type	Material Flammability Rating	Housing Color	Number of Positions	Shell Material	Primary Material	Connector Type	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Type	Mounting Type	Features	Contact Shape	Note	Fastening Type	Length - Overall [x]	Length - Overall [x]	Color - Cable	Bend Radius	Color - Connectors	2nd Connector	Fiber Type	Cable Type	Jacket (Insulation) Material	Cable Diameter [diameter]	Cable Diameter [diameter]
BULGIN LIMITED PXP4011/04P/3540	Crimp and Solder Cup	UL94 V-0	Black	4	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Male Pins	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4011/08S/6570	Crimp and Solder Cup	UL94 V-0	Black	8	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4010/10P/5560	Crimp and Solder Cup	UL94 V-0	Black Blue	10	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Plug Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Male Pins	Free Hanging (In-Line)	Backshell Coupling Nut UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4010/12S/3035	Crimp and Solder Cup	UL94 V-0	Black Blue	12	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Plug Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell Coupling Nut UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXF4051BAB										-25 °C	70 °C		Multimode OM1 Simplex		IP66 IP68 IP69K Low Smoke				10 m	32.8 ft	Orange	30 mm	Black Blue	LC	62.5/125	Buffered Fiber	Poly-Vinyl Chloride (PVC)	2 mm	0.08 in
BULGIN LIMITED PXP4010/10S/6065	Crimp and Solder Cup	UL94 V-0	Black Blue	10	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Plug Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell Coupling Nut UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4011/10P/4550	Crimp and Solder Cup	UL94 V-0	Black	10	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Male Pins	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4011/02P/6065	Crimp and Solder Cup	UL94 V-0	Black	2	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Male Pins	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4010/12S/6570	Crimp and Solder Cup	UL94 V-0	Black Blue	12	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Plug Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell Coupling Nut UV Resistant	Circular	Contacts Not Included	Bayonet Lock
BULGIN LIMITED PXP4011/10S/5055	Crimp and Solder Cup	UL94 V-0	Black	10	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Plastic	Receptacle Housing	Keyed	Unshielded	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	For Female Sockets	Free Hanging (In-Line)	Backshell UV Resistant	Circular	Contacts Not Included	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.09
		10	$ 12.83
		25	$ 12.02
		50	$ 11.45
		100	$ 10.90
		250	$ 10.22
		500	$ 9.73
		1000	$ 9.27

Description

General part information

buccaneer-4000 Series

10 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, UV Resistant
