DLW21HN181SQ2L
ActiveMurata Power Solutions Inc.

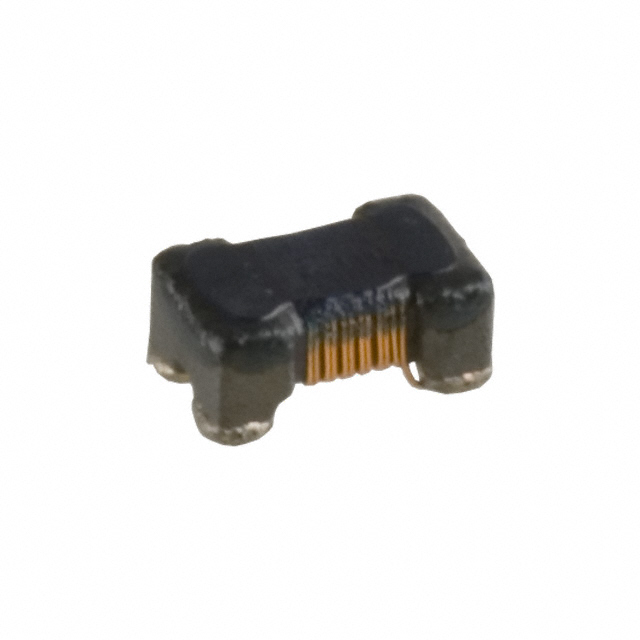

DATA LINE FILTER, 2 FUNCTION(S), 50V, 0.25A, EIA STD PACKAGE SIZE 0805, 4 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DLW21HN181SQ2L
ActiveMurata Power Solutions Inc.
DATA LINE FILTER, 2 FUNCTION(S), 50V, 0.25A, EIA STD PACKAGE SIZE 0805, 4 PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLW21HN181SQ2L |
|---|---|
| Current Rating (Max) [Max] | 250 mA |
| DC Resistance (DCR) (Max) [Max] | 500 mOhm |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Impedance @ Frequency | 180 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.36 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
| 6000 | $ 0.18 | |||
| 15000 | $ 0.17 | |||
| 30000 | $ 0.17 | |||
Description
General part information
DLW21HN Series
2 Line Common Mode Choke Surface Mount 180 Ohms @ 100 MHz 250mA DCR 500mOhm
