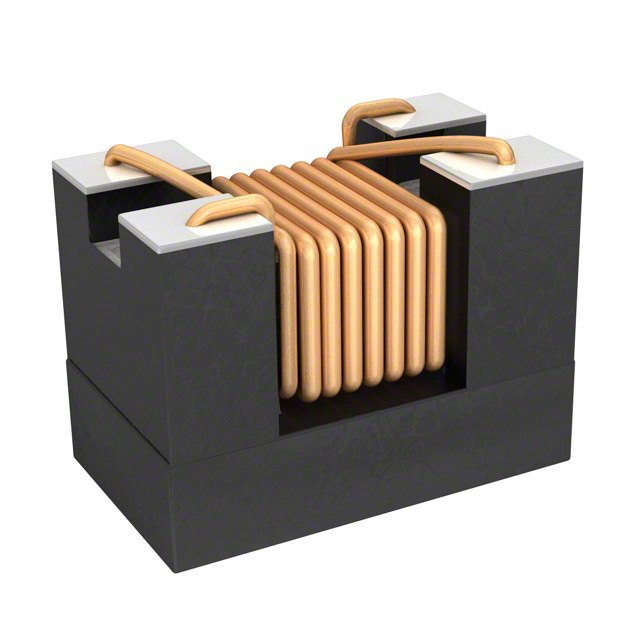

DLW21HN121HQ2L
ActiveMurata Power Solutions Inc.
CMC 200MA 2LN 120 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DLW21HN121HQ2L
ActiveMurata Power Solutions Inc.
CMC 200MA 2LN 120 OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLW21HN121HQ2L |
|---|---|
| Current Rating (Max) [Max] | 200 mA |
| DC Resistance (DCR) (Max) [Max] | 680 mOhm |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Impedance @ Frequency | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.22 | |
Description
General part information
DLW21HN Series
2 Line Common Mode Choke Surface Mount 120 Ohms @ 100 MHz 200mA DCR 680mOhm
