M83513/04-F12C

Active

Cinch Connectivity Solutions Trompeter

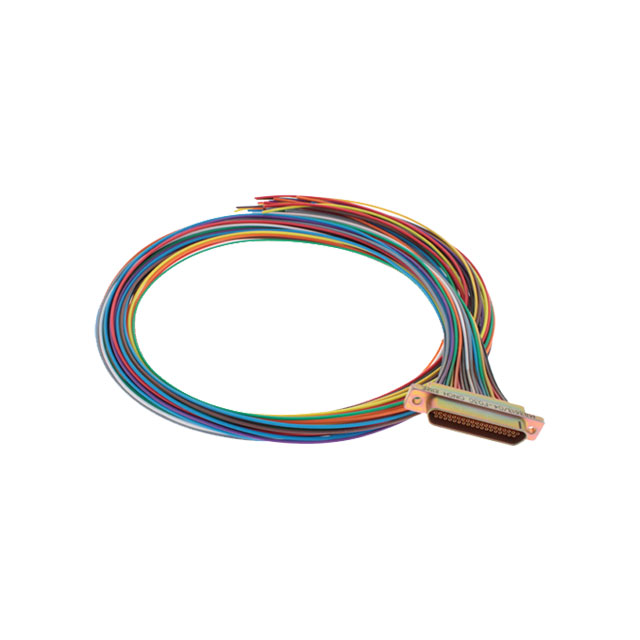

CABLE ASSY D-MIC-D 37P 914.4MM

Deep-Dive with AI

Search across all available documentation for this part.

M83513/04-F12C

Active

Cinch Connectivity Solutions Trompeter

CABLE ASSY D-MIC-D 37P 914.4MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/04-F12C

1st Connector	Receptacle, Female Sockets
2nd Connector	Individual Wire Leads
Color	Multiple, Individual
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	37
Type	D-Type, Micro-D

M83513/04 Series

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	2nd Connector	Color	Length [x]	Length [x]	1st Connector	Type
Cinch Connectivity Solutions Trompeter M83513/04-G03C	51	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-C03C	21	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-B12N	15	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	914.4 mm	3 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-H03C	100	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-B03C	15	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-F12C	37	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	914.4 mm	3 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-C03N	21	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-A03C	9	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-G11N	51	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-E03N	31	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 137.39
	Bulk	1	$ 1920.54

Description

General part information

M83513/04 Series

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 3.00' (914.40mm) Receptacle, Female Sockets to Individual Wire Leads

Documents

Technical documentation and resources

No documents available
