M83513/04-B03C

Active

Cinch Connectivity Solutions Trompeter

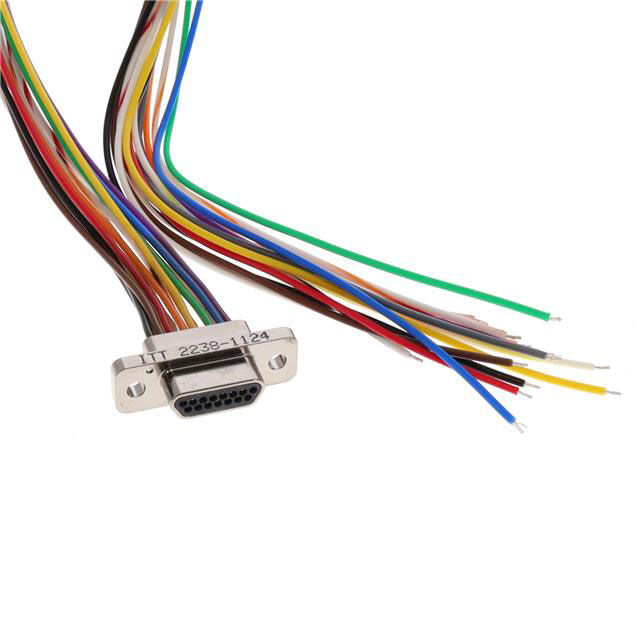

CABLE ASSY D-MIC-D 15P 457.2MM

Deep-Dive with AI

Search across all available documentation for this part.

M83513/04-B03C

Active

Cinch Connectivity Solutions Trompeter

CABLE ASSY D-MIC-D 15P 457.2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/04-B03C

1st Connector	Receptacle, Female Sockets
2nd Connector	Individual Wire Leads
Color	Multiple, Individual
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	15
Type	D-Type, Micro-D

M83513/04 Series

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	2nd Connector	Color	Length [x]	Length [x]	1st Connector	Type
Cinch Connectivity Solutions Trompeter M83513/04-G03C	51	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-C03C	21	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-B12N	15	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	914.4 mm	3 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-H03C	100	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-B03C	15	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-F12C	37	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	914.4 mm	3 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-C03N	21	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-A03C	9	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-G11N	51	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D
Cinch Connectivity Solutions Trompeter M83513/04-E03N	31	50 µin	1.27 µm	Gold	Individual Wire Leads	Individual Multiple	457.2 mm	1.5 ft	Female Sockets Receptacle	D-Type Micro-D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 76.73
		10	$ 65.22
		25	$ 61.14
		50	$ 58.23
		100	$ 55.45
	Bulk	1	$ 666.38

Description

General part information

M83513/04 Series

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Receptacle, Female Sockets to Individual Wire Leads

Documents

Technical documentation and resources

No documents available
