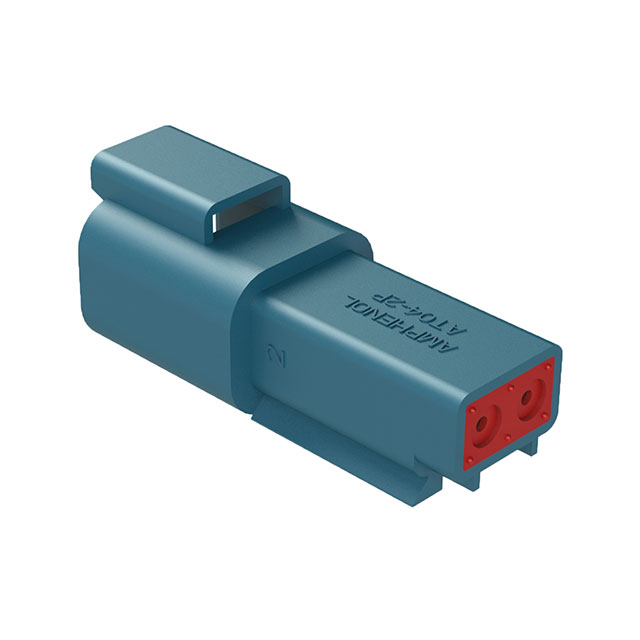

AT04-2P-BLU

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 2POS 14-20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAT Series Datasheet +1

AT04-2P-BLU

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 2POS 14-20AWG

Deep-Dive with AI

DocumentsAT Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-2P-BLU

Color	Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-2P Series

Part	Insulation Material	Number of Positions	Number of Rows	Note	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Features	Connector Type	Contact Type	Color	Contact Termination	Mounting Type	Accessory Type	For Use With/Related Products	Applications	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Termination	Ingress Protection	Shrouding	Contact Material	Contact Finish - Mating	Style	Wire Type	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]
Amphenol Sine Systems Corp AT04-2P-MM03	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C
Amphenol Sine Systems Corp AT04-2P-PM14	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Cap (Cover) Mounting Flange Sealed	Receptacle	Male Pin	Black	Crimp
Amphenol Sine Systems Corp AT04-2P-EC01BLK	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Cap (Cover)	Receptacle	Male Pin	Black	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-2P-RT06		2						IP67						Terminator	AT Series™
Amphenol Sine Systems Corp AT04-2P-BM03	Thermoplastic	2	1		-55 °C	125 °C	Latch Holder		Receptacle	Male Pin			Through Hole			Automotive General Purpose Industrial	Circular	All	13 A	0.835 "	21.21 mm	Black	Solder	IP67	Shrouded - 4 Wall	Copper Alloy	Nickel	Board to Cable/Wire
Amphenol Sine Systems Corp AT04-2P-BLU	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder		Receptacle	Male Pin	Blue	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-2P-L012	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Mounting Flange Sealed	Receptacle	Male Pin	Gray	Crimp
Amphenol Sine Systems Corp AT04-2P-KIT01		2	1				Latch Lock	Wedge Lock	Plug	Male Pin	Gray		Free Hanging (In-Line)																Discrete	Crimp	16 AWG	18 AWG
Amphenol Sine Systems Corp AT04-2P-SR01BLK	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Strain Relief	Receptacle	Male Pin	Black	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-2P-D1N4GRY		2	1				Latch Holder	Diode	Receptacle	Male Pin	Gray		Free Hanging (In-Line)																Discrete	Crimp	14 AWG	20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.78
		10	$ 0.66
		25	$ 0.63
		50	$ 0.62
		100	$ 0.59
		250	$ 0.54
		500	$ 0.49
		1000	$ 0.47

Description

General part information

AT04-2P Series

2 Rectangular Connectors - Housings Receptacle Blue

Documents

Technical documentation and resources

AT Series

Datasheet

A Series Pick Your Color

Datasheet
