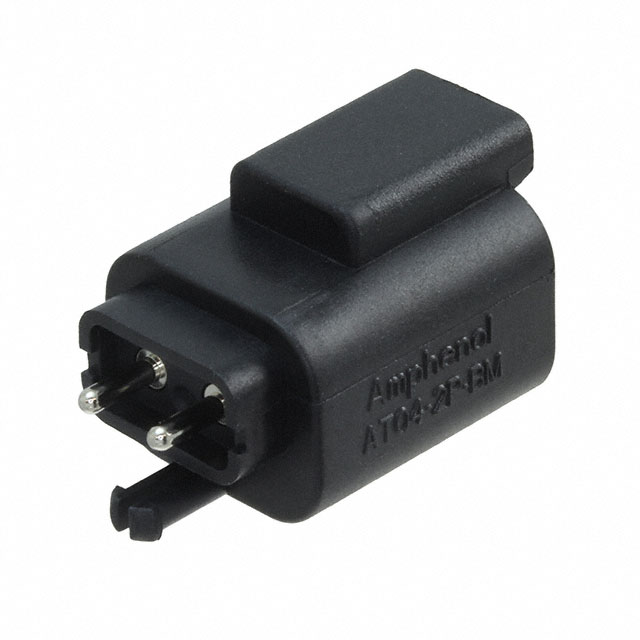

AT04-2P-BM03
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 2POS
Deep-Dive with AI
Search across all available documentation for this part.
AT04-2P-BM03
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT04-2P-BM03 |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Nickel |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 13 A |
| Fastening Type | Latch Holder |
| Ingress Protection | IP67 |
| Insulation Color | Black |
| Insulation Height | 0.835 " |
| Insulation Height | 21.21 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
AT04-2P Series
| Part | Insulation Material | Number of Positions | Number of Rows | Note | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Features | Connector Type | Contact Type | Color | Contact Termination | Mounting Type | Accessory Type | For Use With/Related Products | Applications | Contact Shape | Number of Positions Loaded | Current Rating (Amps) | Insulation Height | Insulation Height | Insulation Color | Termination | Ingress Protection | Shrouding | Contact Material | Contact Finish - Mating | Style | Wire Type | Cable Termination | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Thermoplastic | 2 | 1 | Contacts Not Included | -55 °C | 125 °C | ||||||||||||||||||||||||||
Amphenol Sine Systems Corp | Thermoplastic | 2 | 1 | Contacts Not Included | -55 °C | 125 °C | Latch Holder | Cap (Cover) Mounting Flange Sealed | Receptacle | Male Pin | Black | Crimp | ||||||||||||||||||||
Amphenol Sine Systems Corp | Thermoplastic | 2 | 1 | Contacts Not Included | -55 °C | 125 °C | Latch Holder | Cap (Cover) | Receptacle | Male Pin | Black | Crimp | Free Hanging (In-Line) | |||||||||||||||||||
Amphenol Sine Systems Corp | 2 | IP67 | Terminator | AT Series™ | ||||||||||||||||||||||||||||
Amphenol Sine Systems Corp | Thermoplastic | 2 | 1 | -55 °C | 125 °C | Latch Holder | Receptacle | Male Pin | Through Hole | Automotive General Purpose Industrial | Circular | All | 13 A | 0.835 " | 21.21 mm | Black | Solder | IP67 | Shrouded - 4 Wall | Copper Alloy | Nickel | Board to Cable/Wire | ||||||||||
Amphenol Sine Systems Corp | Thermoplastic | 2 | 1 | Contacts Not Included | -55 °C | 125 °C | Latch Holder | Receptacle | Male Pin | Blue | Crimp | Free Hanging (In-Line) | ||||||||||||||||||||
Amphenol Sine Systems Corp | Thermoplastic | 2 | 1 | Contacts Not Included | -55 °C | 125 °C | Latch Holder | Mounting Flange Sealed | Receptacle | Male Pin | Gray | Crimp | ||||||||||||||||||||
Amphenol Sine Systems Corp | 2 | 1 | Latch Lock | Wedge Lock | Plug | Male Pin | Gray | Free Hanging (In-Line) | Discrete | Crimp | 16 AWG | 18 AWG | ||||||||||||||||||||
Amphenol Sine Systems Corp | Thermoplastic | 2 | 1 | Contacts Not Included | -55 °C | 125 °C | Latch Holder | Strain Relief | Receptacle | Male Pin | Black | Crimp | Free Hanging (In-Line) | |||||||||||||||||||
Amphenol Sine Systems Corp | 2 | 1 | Latch Holder | Diode | Receptacle | Male Pin | Gray | Free Hanging (In-Line) | Discrete | Crimp | 14 AWG | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.80 | |
| 10 | $ 2.54 | |||
| 25 | $ 2.41 | |||
| 40 | $ 2.35 | |||
| 80 | $ 2.24 | |||
| 230 | $ 1.96 | |||
| 800 | $ 1.74 | |||
| 1600 | $ 1.57 | |||
| 2400 | $ 1.51 | |||
Description
General part information
AT04-2P Series
Connector Header Through Hole 2 position
