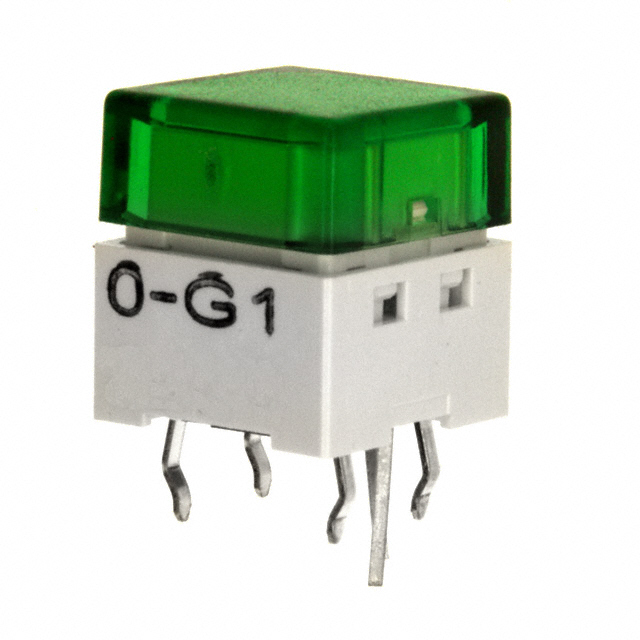

B3W-9002-HG1G
ActiveOmron Electronics Inc-EMC Div
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
B3W-9002-HG1G
ActiveOmron Electronics Inc-EMC Div
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B3W-9002-HG1G |
|---|---|
| Actuator Height off PCB, Vertical [z] | 10.2 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Square Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Features | Sealed - Fully |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 3.7 VDC |
| Mechanical Life | 300000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Outline [x] | 10 mm |
| Outline [y] | 10 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.58 | |
| 10 | $ 3.44 | |||
| 25 | $ 3.14 | |||
| 100 | $ 2.72 | |||
| 300 | $ 2.63 | |||
Description
General part information
B3W Series
Tactile Switch SPST-NO Top Actuated Through Hole
