B3W-9012-R2R

Active

Omron Electronics Inc-EMC Div

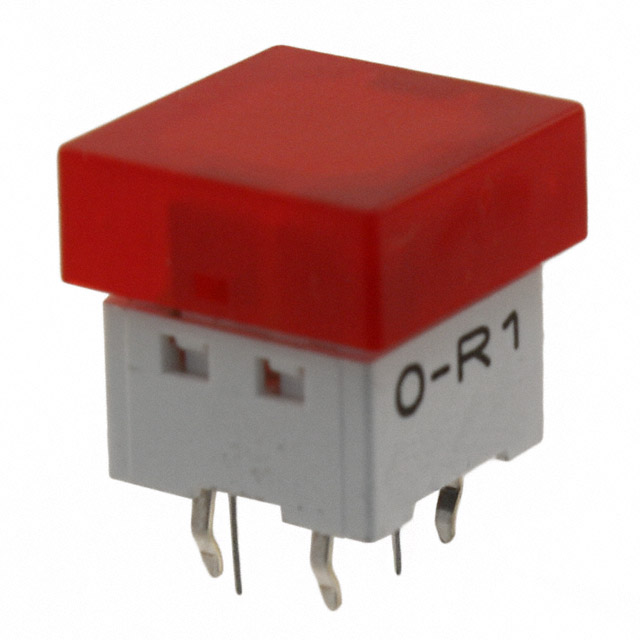

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet +2

B3W-9012-R2R

Active

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B3W-9012-R2R

Actuator Height off PCB, Vertical [z]	10.2 mm
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Fully
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.8 VDC
Mechanical Life	300000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	12 mm
Outline [y]	12 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

B3W Series

...

Part	Illumination Voltage (Nominal)	Switch Function	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Contact Rating @ Voltage	Illumination	Mechanical Life	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical [z]	Mounting Type	Circuit	Illumination Type, Color	Features	Actuator Type	Termination Style	Operating Force	Ingress Protection
Omron Electronics Inc-EMC Div B3W-9010-G2G	2.1 VDC	Off-Mom	0.25 mm	70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Illuminated	1000000 Cycles	12 mm	12 mm	10.2 mm	Through Hole	SPST-NO	Green LED	Sealed - Fully	Square Button	PC Pin
Omron Electronics Inc-EMC Div B3W-9012-R2R	1.8 VDC	Off-Mom	0.25 mm	70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Illuminated	300000 Cycles	12 mm	12 mm	10.2 mm	Through Hole	SPST-NO	LED Red	Sealed - Fully	Square Button	PC Pin
Omron Electronics Inc-EMC Div B3W-4050		Off-Mom		70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Non-Illuminated	3000000 Cycles	12 mm	12 mm	7.3 mm	Through Hole	SPST-NO			Plunger for Cap	PC Pin	200 gf	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div B3W-9000-Y2Y	2.4 VDC	Off-Mom	0.25 mm	70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Illuminated	1000000 Cycles	10 mm	10 mm	10.2 mm	Through Hole	SPST-NO	LED Yellow	Sealed - Fully	Square Button	PC Pin
Omron Electronics Inc-EMC Div B3W-9000-Y2C	2.4 VDC	Off-Mom	0.25 mm	70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Illuminated	1000000 Cycles	10 mm	10 mm	10.2 mm	Through Hole	SPST-NO	LED Yellow	Sealed - Fully	Square Button	PC Pin
Omron Electronics Inc-EMC Div B3W-9002-B1B	3.7 VDC	Off-Mom	0.25 mm	70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Illuminated	300000 Cycles	10 mm	10 mm	10.2 mm	Through Hole	SPST-NO	Blue LED	Sealed - Fully	Square Button	PC Pin
Omron Electronics Inc-EMC Div B3W-9002-B2C	3.7 VDC	Off-Mom	0.25 mm	70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Illuminated	300000 Cycles	10 mm	10 mm	10.2 mm	Through Hole	SPST-NO	Blue LED	Sealed - Fully	Square Button	PC Pin
Omron Electronics Inc-EMC Div B3W-9002-HG2C	3.7 VDC	Off-Mom	0.25 mm	70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Illuminated	300000 Cycles	10 mm	10 mm	10.2 mm	Through Hole	SPST-NO	Green LED	Sealed - Fully	Square Button	PC Pin
Omron Electronics Inc-EMC Div B3W-9010-B2N	3.7 VDC	Off-Mom	0.25 mm	70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Illuminated	1000000 Cycles	12 mm	12 mm	10.2 mm	Through Hole	SPST-NO	Blue LED	Sealed - Fully	Square Button	PC Pin
Omron Electronics Inc-EMC Div B3W-9002-HG1G	3.7 VDC	Off-Mom	0.25 mm	70 °C	-25 °C	Top Actuated	0.05 A 24 VDC	Illuminated	300000 Cycles	10 mm	10 mm	10.2 mm	Through Hole	SPST-NO	Green LED	Sealed - Fully	Square Button	PC Pin
