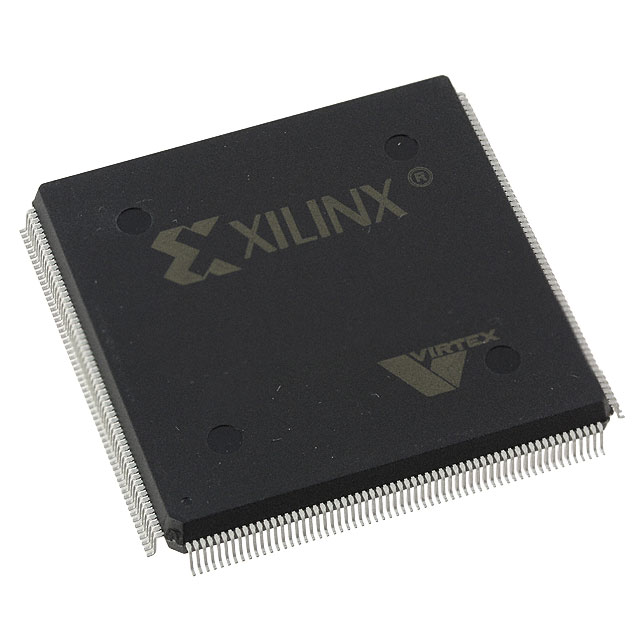

XCV200E-8PQ240C

Obsolete

AMD

IC FPGA 158 I/O 240QFP

Search across all available documentation for this part.

Obsolete

AMD

IC FPGA 158 I/O 240QFP

Technical Specifications

Parameters and characteristics for this part

Specification	XCV200E-8PQ240C

Mounting Type	Surface Mount
Number of Gates [custom]	306393
Number of I/O	158
Number of LABs/CLBs	1176
Number of Logic Elements/Cells	5292
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	240-BFQFP
Supplier Device Package	240-PQFP (32x32)
Total RAM Bits	114688 bits
Voltage - Supply [Max]	1.89 V
Voltage - Supply [Min]	1.71 V

Part	Total RAM Bits	Supplier Device Package	Number of LABs/CLBs	Number of Gates [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Cells	Mounting Type	Package / Case	Number of I/O	Voltage - Supply [Max]	Voltage - Supply [Min]
AMD XCV200E-8FG256C	114688 bits	256-FBGA (17x17)	1176	306393	0 °C	85 °C	5292	Surface Mount	256-BGA	176	1.89 V	1.71 V
AMD XCV200E-8PQ240C	114688 bits	240-PQFP (32x32)	1176	306393	0 °C	85 °C	5292	Surface Mount	240-BFQFP	158	1.89 V	1.71 V
AMD XCV200E-7FG456C	114688 bits	456-FBGA (23x23)	1176	306393	0 °C	85 °C	5292	Surface Mount	456-BBGA	284	1.89 V	1.71 V
AMD XCV200E-7FG256C	114688 bits	256-FBGA (17x17)	1176	306393	0 °C	85 °C	5292	Surface Mount	256-BGA	176	1.89 V	1.71 V
AMD XCV200E-7PQ240C	114688 bits	240-PQFP (32x32)	1176	306393	0 °C	85 °C	5292	Surface Mount	240-BFQFP	158	1.89 V	1.71 V
AMD XCV200E-7BG352C	114688 bits	352-MBGA (35x35)	1176	306393	0 °C	85 °C	5292	Surface Mount	352-LBGA Exposed Pad Metal	260	1.89 V	1.71 V
AMD XCV200E-6BG352C	114688 bits	352-MBGA (35x35)	1176	306393	0 °C	85 °C	5292	Surface Mount	352-LBGA Exposed Pad Metal	260	1.89 V	1.71 V
AMD XCV200E-7PQ240I	114688 bits	240-PQFP (32x32)	1176	306393	-40 C	100 °C	5292	Surface Mount	240-BFQFP	158	1.89 V	1.71 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Virtex®-E Field Programmable Gate Array (FPGA) IC 158 114688 5292 240-BFQFP
