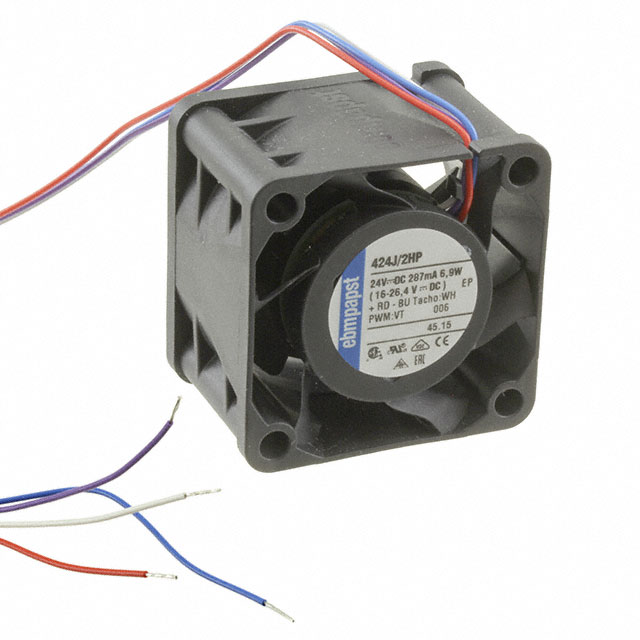

424J/2HP
Activeebm-papst Inc.
FAN 24VDC 22CFM 7.1W 40X28MM
Deep-Dive with AI
Search across all available documentation for this part.
424J/2HP
Activeebm-papst Inc.
FAN 24VDC 22CFM 7.1W 40X28MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 424J/2HP |
|---|---|
| Air Flow | 22.4 CFM |
| Air Flow | 0.627 m³/min |
| Approval Agency | UL, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), PWM Control |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polyamide (PA), Nylon |
| Noise | 54 dB |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 7.2 W |
| RPM | 17200 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 2.129 in H2O |
| Static Pressure | 530.3 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 16 VDC |
| Weight | 0.099 lb |
| Weight | 44.91 g |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.02 | |
| 10 | $ 30.16 | |||
| 36 | $ 29.02 | |||
| 72 | $ 27.11 | |||
| 108 | $ 25.01 | |||
| 252 | $ 24.62 | |||
Description
General part information
424J Series
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 22.4 CFM (0.627mł/min) 4 Wire Leads
