424JH

Active

ebm-papst Inc.

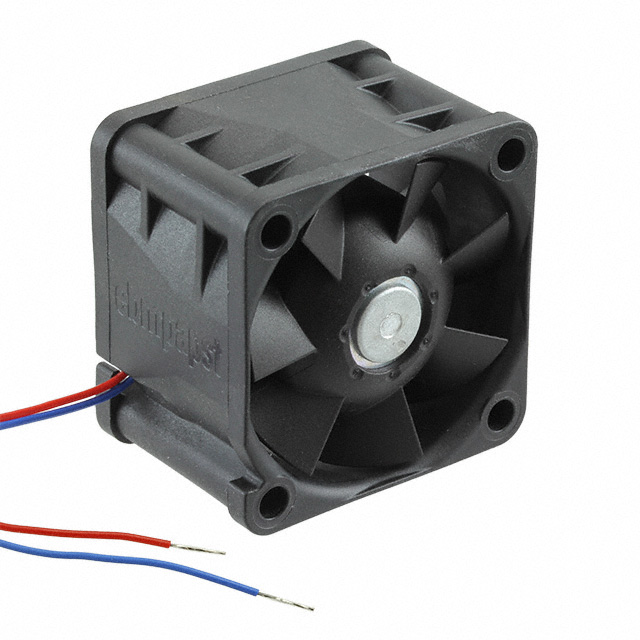

FAN AXIAL 40X28MM 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 40X28MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	424JH

Air Flow	22.4 CFM
Air Flow	0.627 m³/min
Approval Agency	UL, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	54 dB
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	7.08 W
RPM	17200 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	16 VDC
Weight	0.99 lb
Weight	449.06 g
Width [y]	28 mm

Part	Voltage - Rated	Material - Blade	Air Flow	Air Flow	Width [y]	Termination	Noise	Bearing Type	Weight	Weight	Power (Watts)	Approval Agency	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	RPM	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Fan Type	Lifetime @ Temp.	Static Pressure	Static Pressure	Features
ebm-papst Inc. 424JH	24 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	22.4 CFM	0.627 m³/min	28 mm	2 Wire Leads	54 dB	Ball	0.99 lb	449.06 g	7.08 W	CSA UL VDE	-20 °C	-20 C	65 °C	65 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	16 VDC	26.4 VDC	17200 RPM	40 mm	Square	40 mm	Tubeaxial	60000 Hrs
ebm-papst Inc. 424J/2HP	24 VDC	Nylon Polyamide (PA)	22.4 CFM	0.627 m³/min	28 mm	4 Wire Leads	54 dB	Ball	0.099 lb	44.91 g	7.2 W	CSA UL VDE	-20 °C	-20 C	65 °C	65 °C		16 VDC	26.4 VDC	17200 RPM	40 mm	Square	40 mm	Tubeaxial	60000 Hrs	2.129 in H2O	530.3 Pa	PWM Control Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 22.4 CFM (0.627mł/min) 2 Wire Leads
