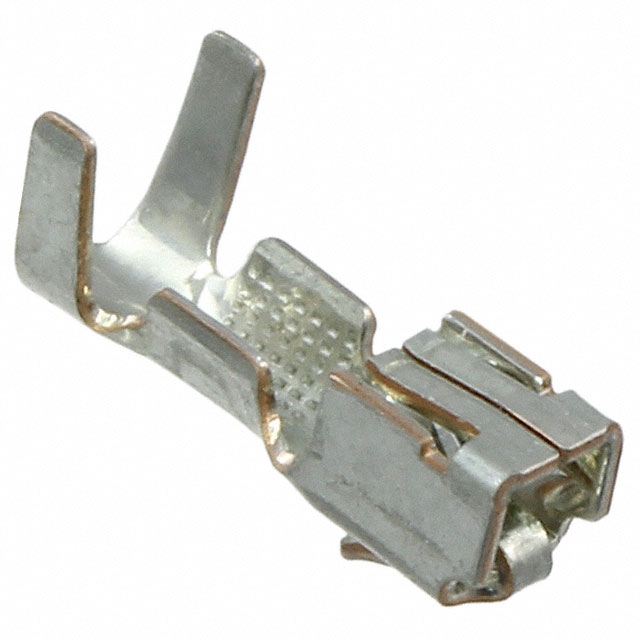

DF1-2428SCF

LTB

Hirose Electric USA, Inc.

HEADERS & WIRE HOUSINGS FEMALE CRIMP CONTACT AWG#24-#28

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF1 Series Catalog

DF1-2428SCF

LTB

Hirose Electric USA, Inc.

HEADERS & WIRE HOUSINGS FEMALE CRIMP CONTACT AWG#24-#28

Deep-Dive with AI

DocumentsDF1 Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1-2428SCF

Contact Finish	Tin
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

DF1-2 Series

Part	Accessory Type	For Use With/Related Products	Number of Positions	Features	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Material	Fastening Type	Contact Finish - Post	Contact Type	Number of Positions Loaded	Style	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Height	Insulation Height	Voltage Rating	Contact Shape	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Material	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Pin or Socket	Overall Contact Length	Overall Contact Length	Cable Termination	Wire Type	Color	Wire Gauge	Pitch [x]	Pitch [x]	Features	Note	Features [Min]	Features [Max]
Hirose Electric USA, Inc. DF1-2A1.33	Cap (Cover)	DF1 Series	2	24 AWG
Hirose Electric USA, Inc. DF1-2P-2.5DS(05)			2		3 A	1 µm	39.4 µin	Brown	Brass	Friction Lock	Tin	Male Pin	All	Board to Cable/Wire	Shrouded - 1 Wall	-30 ░C	85 °C	Through Hole Right Angle	6 mm	0.236 in	250 VDC	Square	Solder	1	2.5 mm	0.098 in	Nylon Polyamide (PA)	Header	0.177 in	4.5 mm	0.118 in	3 mm	UL94 V-0
Hirose Electric USA, Inc. DF1-2428SCF																																		Crimp	24 AWG	28 AWG	Tin	Socket
Hirose Electric USA, Inc. DF1-20P-2.5DSA(05)			20		3 A	1 µm	39.4 µin	Brown	Brass	Friction Lock	Tin	Male Pin	All	Board to Cable/Wire	Shrouded - 1 Wall	-30 ░C	85 °C	Through Hole	7.5 mm	0.295 in	250 VDC	Square	Solder	1	2.5 mm	0.098 in	Nylon Polyamide (PA)	Header	0.177 in	4.5 mm	0.118 in	3 mm	UL94 V-0						10 mm	0.394 in
Hirose Electric USA, Inc. DF1-20S-2.5R24(05)			20									Female Socket						Free Hanging (In-Line)						1				Socket									Tin				IDC	Discrete	Brown	24 AWG	0.098 in	2.5 mm	Feed Through
Hirose Electric USA, Inc. DF1-20S-2.5C			20									Female Socket				-30 ░C	85 °C	Free Hanging (In-Line)						1			Nylon Polyamide (PA)	Socket						Crimp									Brown		0.098 in	2.5 mm		Contacts Not Included
Hirose Electric USA, Inc. DF1-20S-2.5R26(05)			20									Female Socket						Free Hanging (In-Line)						1				Socket									Tin				IDC	Discrete	Brown	26 AWG	0.098 in	2.5 mm	Feed Through
Hirose Electric USA, Inc. DF1-2428SC																																		Crimp	24 AWG	28 AWG	Tin	Socket
Hirose Electric USA, Inc. DF1-20A1.05	Cap (Cover)	DF1 Series	20																																														26 AWG	28 AWG
