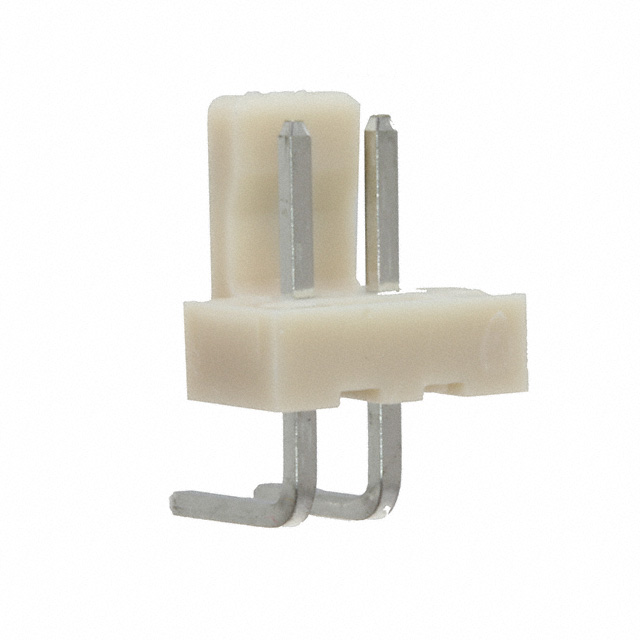

DF1-2P-2.5DS(05)

LTB

Hirose Electric USA, Inc.

BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.098 INCH PITCH, SOLDER TERMINAL, LOCKING, BROWN INSULATOR, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF1 Series Catalog

DF1-2P-2.5DS(05)

LTB

Hirose Electric USA, Inc.

BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.098 INCH PITCH, SOLDER TERMINAL, LOCKING, BROWN INSULATOR, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDF1 Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1-2P-2.5DS(05)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Mating	0.177 in
Contact Length - Mating	4.5 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Brown
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

DF1-2 Series

Part	Accessory Type	For Use With/Related Products	Number of Positions	Features	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Material	Fastening Type	Contact Finish - Post	Contact Type	Number of Positions Loaded	Style	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Height	Insulation Height	Voltage Rating	Contact Shape	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Material	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Pin or Socket	Overall Contact Length	Overall Contact Length	Cable Termination	Wire Type	Color	Wire Gauge	Pitch [x]	Pitch [x]	Features	Note	Features [Min]	Features [Max]
Hirose Electric USA, Inc. DF1-2A1.33	Cap (Cover)	DF1 Series	2	24 AWG
Hirose Electric USA, Inc. DF1-2P-2.5DS(05)			2		3 A	1 µm	39.4 µin	Brown	Brass	Friction Lock	Tin	Male Pin	All	Board to Cable/Wire	Shrouded - 1 Wall	-30 ░C	85 °C	Through Hole Right Angle	6 mm	0.236 in	250 VDC	Square	Solder	1	2.5 mm	0.098 in	Nylon Polyamide (PA)	Header	0.177 in	4.5 mm	0.118 in	3 mm	UL94 V-0
Hirose Electric USA, Inc. DF1-2428SCF																																		Crimp	24 AWG	28 AWG	Tin	Socket
Hirose Electric USA, Inc. DF1-20P-2.5DSA(05)			20		3 A	1 µm	39.4 µin	Brown	Brass	Friction Lock	Tin	Male Pin	All	Board to Cable/Wire	Shrouded - 1 Wall	-30 ░C	85 °C	Through Hole	7.5 mm	0.295 in	250 VDC	Square	Solder	1	2.5 mm	0.098 in	Nylon Polyamide (PA)	Header	0.177 in	4.5 mm	0.118 in	3 mm	UL94 V-0						10 mm	0.394 in
Hirose Electric USA, Inc. DF1-20S-2.5R24(05)			20									Female Socket						Free Hanging (In-Line)						1				Socket									Tin				IDC	Discrete	Brown	24 AWG	0.098 in	2.5 mm	Feed Through
Hirose Electric USA, Inc. DF1-20S-2.5C			20									Female Socket				-30 ░C	85 °C	Free Hanging (In-Line)						1			Nylon Polyamide (PA)	Socket						Crimp									Brown		0.098 in	2.5 mm		Contacts Not Included
Hirose Electric USA, Inc. DF1-20S-2.5R26(05)			20									Female Socket						Free Hanging (In-Line)						1				Socket									Tin				IDC	Discrete	Brown	26 AWG	0.098 in	2.5 mm	Feed Through
Hirose Electric USA, Inc. DF1-2428SC																																		Crimp	24 AWG	28 AWG	Tin	Socket
Hirose Electric USA, Inc. DF1-20A1.05	Cap (Cover)	DF1 Series	20																																														26 AWG	28 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.24
		10	$ 0.20
		100	$ 0.16
		500	$ 0.13
		1000	$ 0.11
		5000	$ 0.10
		10000	$ 0.09

Description

General part information

DF1-2 Series

Connector Header Through Hole, Right Angle 2 position 0.098" (2.50mm)

Documents

Technical documentation and resources

DF1 Series Catalog

Datasheet
