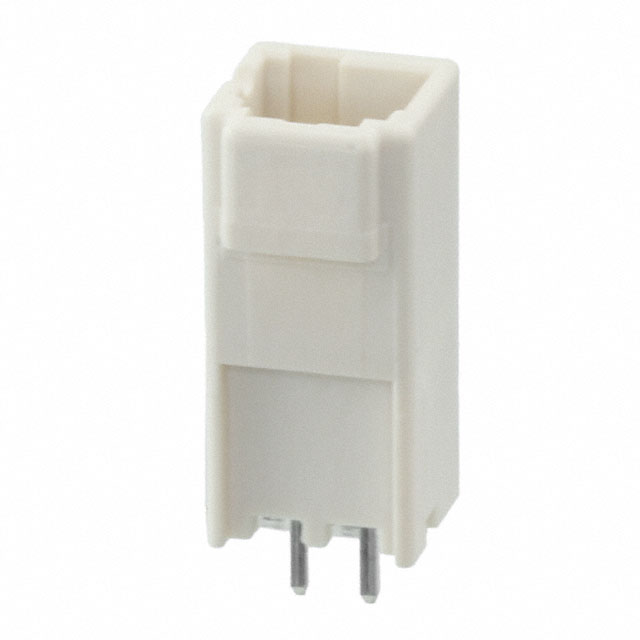

DF1EG-2P-2.5DSA(35)

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 2.5MM PITCH CONNECTORS FOR FULL LOCK, DISCRETE WIRE CONNECTION

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1EG-2P-2.5DSA(35)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Mating	0.177 in
Contact Length - Mating	4.5 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	15.8 mm, 19.8 mm, 14.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

DG1EG Series

Part	Number of Rows	Mated Stacking Heights	Contact Type	Style	Insulation Material	Connector Type	Contact Material	Material Flammability Rating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Color	Number of Positions Loaded	Number of Positions	Contact Length - Mating	Contact Length - Mating	Shrouding	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
Hirose Electric USA, Inc. DF1EG-2P-2.5DSA	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0	Tin	0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All	2	0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	1 µm	39.4 µin
Hirose Electric USA, Inc. DF1EG-2P-2.5DSA(35)	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0	Tin	0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All	2	0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	1 µm	39.4 µin
Hirose Electric USA, Inc. DF1EG-10P-2.5DSA(05)	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0	Tin	0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All	10	0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	1 µm	39.4 µin
Hirose Electric USA, Inc. DF1EG-4P-2.5DSA(05)	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0	Tin	0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All	4	0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	1 µm	39.4 µin
Hirose Electric USA, Inc. DF1EG-5P-2.5DSA	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0	Tin	0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All		0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	1 µm	39.4 µin
Hirose Electric USA, Inc. DF1EG-8P-2.5DSA(35)	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0	Tin	0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All	8	0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	1 µm	39.4 µin
Hirose Electric USA, Inc. DF1EG-3P-2.5DSA(05)	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0	Tin	0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All		0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	1 µm	39.4 µin
Hirose Electric USA, Inc. DF1EG-10P-2.5DSA(36)	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0		0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All	10	0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	0.203 Ám	8 Áin	Gold
Hirose Electric USA, Inc. DF1EG-3P-2.5DSA	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0	Tin	0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All		0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	1 µm	39.4 µin
Hirose Electric USA, Inc. DF1EG-5P-2.5DSA(36)	1	14.3 mm 15.8 mm 19.8 mm	Male Pin	Board to Cable/Wire	Nylon Polyamide (PA)	Header	Brass	UL94 V-0		0.118 in	3 mm	Through Hole	Square	-35 °C	85 °C	Solder	Natural	All		0.177 in	4.5 mm	Shrouded - 4 Wall	3 A	2.5 mm	0.098 in	Latch Holder	0.203 Ám	8 Áin	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.56
		10	$ 0.42
		100	$ 0.33
		500	$ 0.27
		1000	$ 0.25
		5000	$ 0.21
		10000	$ 0.20
Newark	Each	1	$ 0.32
		5000	$ 0.29

Description

General part information

DG1EG Series

Connector Header Through Hole 2 position 0.098" (2.50mm)
