DF1EG-4P-2.5DSA(05)
ObsoleteHirose Electric USA, Inc.

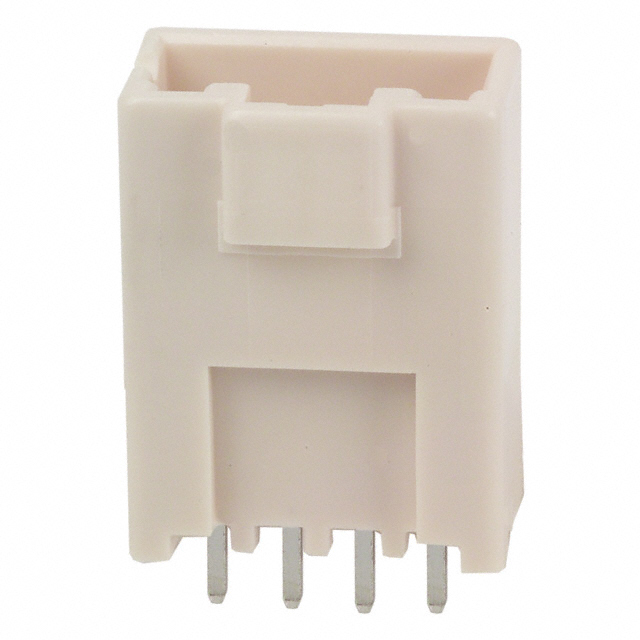

CONN HEADER VERT 4POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DF1EG-4P-2.5DSA(05)
ObsoleteHirose Electric USA, Inc.
CONN HEADER VERT 4POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF1EG-4P-2.5DSA(05) |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Length - Mating | 0.177 in |
| Contact Length - Mating | 4.5 mm |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Holder |
| Insulation Color | Natural |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights | 15.8 mm, 19.8 mm, 14.3 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
DG1EG Series
| Part | Number of Rows | Mated Stacking Heights | Contact Type | Style | Insulation Material | Connector Type | Contact Material | Material Flammability Rating | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Mounting Type | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Insulation Color | Number of Positions Loaded | Number of Positions | Contact Length - Mating | Contact Length - Mating | Shrouding | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | Tin | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 2 | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 1 µm | 39.4 µin | |
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | Tin | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 2 | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 1 µm | 39.4 µin | |
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | Tin | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 10 | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 1 µm | 39.4 µin | |
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | Tin | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 4 | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 1 µm | 39.4 µin | |
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | Tin | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 1 µm | 39.4 µin | ||
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | Tin | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 8 | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 1 µm | 39.4 µin | |
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | Tin | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 1 µm | 39.4 µin | ||
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 10 | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 0.203 Ám | 8 Áin | Gold | |
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | Tin | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 1 µm | 39.4 µin | ||
Hirose Electric USA, Inc. | 1 | 14.3 mm 15.8 mm 19.8 mm | Male Pin | Board to Cable/Wire | Nylon Polyamide (PA) | Header | Brass | UL94 V-0 | 0.118 in | 3 mm | Through Hole | Square | -35 °C | 85 °C | Solder | Natural | All | 0.177 in | 4.5 mm | Shrouded - 4 Wall | 3 A | 2.5 mm | 0.098 in | Latch Holder | 0.203 Ám | 8 Áin | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DG1EG Series
Connector Header Through Hole 4 position 0.098" (2.50mm)
