DF60-3EP-10.16C(15)

LTB

Hirose Electric USA, Inc.

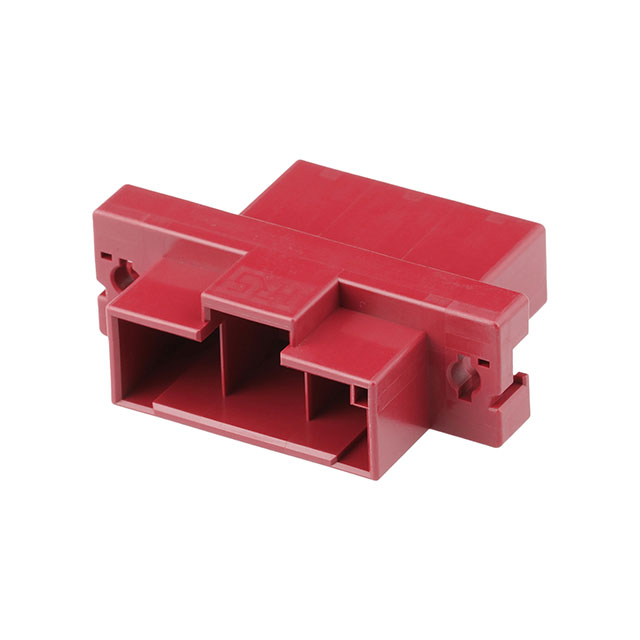

CONN PLUG HSG 3POS 10.16MM

Deep-Dive with AI

Search across all available documentation for this part.

DF60-3EP-10.16C(15)

LTB

Hirose Electric USA, Inc.

CONN PLUG HSG 3POS 10.16MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF60-3EP-10.16C(15)

Color	Red
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Blade Pin
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	10.16 mm
Pitch [x]	0.4 in

DF60 Series

Part	Insulation Color	Number of Rows	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Contact Material	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Contact Finish - Mating	Style	Material Flammability Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Features	Contact Type	Insulation Height	Insulation Height	Contact Shape	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pin or Socket	Wire Gauge	Contact Finish	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Color	Note	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF60-1P-10.16DS(26)	Black	1	Through Hole Right Angle	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0	1	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.683 "	17.35 mm	Rectangular	Solder	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF60-8SCA																										Socket	8 AWG	Gold	Crimp	8 çin	0.203 çm
Hirose Electric USA, Inc. DF60-3P-10.16DSA(26)	Black	1	Through Hole	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0		105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.846 "	21.5 mm	Rectangular	Solder	0.203 Ám	8 Áin							30 mm	10.16 mm	0.4 in
Hirose Electric USA, Inc. DF60-1S-10.16C		1	Free Hanging (In-Line)				Receptacle			Latch Lock				1					Female Socket										Crimp						Black	Contacts Not Included
Hirose Electric USA, Inc. DF60-2P-10.16DSA(27)	Black	1	Through Hole	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0	2	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.846 "	21.5 mm	Rectangular	Solder	0.203 Ám	8 Áin								10.16 mm	0.4 in			Gold	Polybutylene Terephthalate (PBT)	8 µin	0.203 µm	1000 VAC
Hirose Electric USA, Inc. DF60-4P-10.16DS(26)	Black	1	Through Hole Right Angle	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0	4	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.683 "	17.35 mm	Rectangular	Solder	0.203 Ám	8 Áin								10.16 mm	0.4 in
Hirose Electric USA, Inc. DF60-3P-10.16DSA(27)	Black	1	Through Hole	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0		105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.846 "	21.5 mm	Rectangular	Solder	0.203 Ám	8 Áin								10.16 mm	0.4 in			Gold	Polybutylene Terephthalate (PBT)	8 µin	0.203 µm	1000 VAC
Hirose Electric USA, Inc. DF60-3P-10.16DS(27)	Black	1	Through Hole Right Angle	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0		105 ░C	-55 °C	Shrouded - 4 Wall		Male Blade	0.683 "	17.35 mm	Rectangular	Solder	0.203 Ám	8 Áin								10.16 mm	0.4 in			Gold	Polybutylene Terephthalate (PBT)	8 µin	0.203 µm	1000 VAC
Hirose Electric USA, Inc. DF60-3EP-10.16C(15)		1					Plug			Latch Holder					105 ░C	-55 °C		Mounting Flange	Blade Pin										Crimp						Red			Polybutylene Terephthalate (PBT) Glass Filled				10.16 mm	0.4 in
Hirose Electric USA, Inc. DF60-2EP-10.16C(15)		1					Plug			Latch Holder				2	105 ░C	-55 °C		Mounting Flange	Blade Pin										Crimp						Red			Polybutylene Terephthalate (PBT) Glass Filled				10.16 mm	0.4 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.68
		10	$ 2.05
		25	$ 1.84
		50	$ 1.70

Description

General part information

DF60 Series

3 Rectangular Connectors - Housings Plug Red 0.400" (10.16mm)
